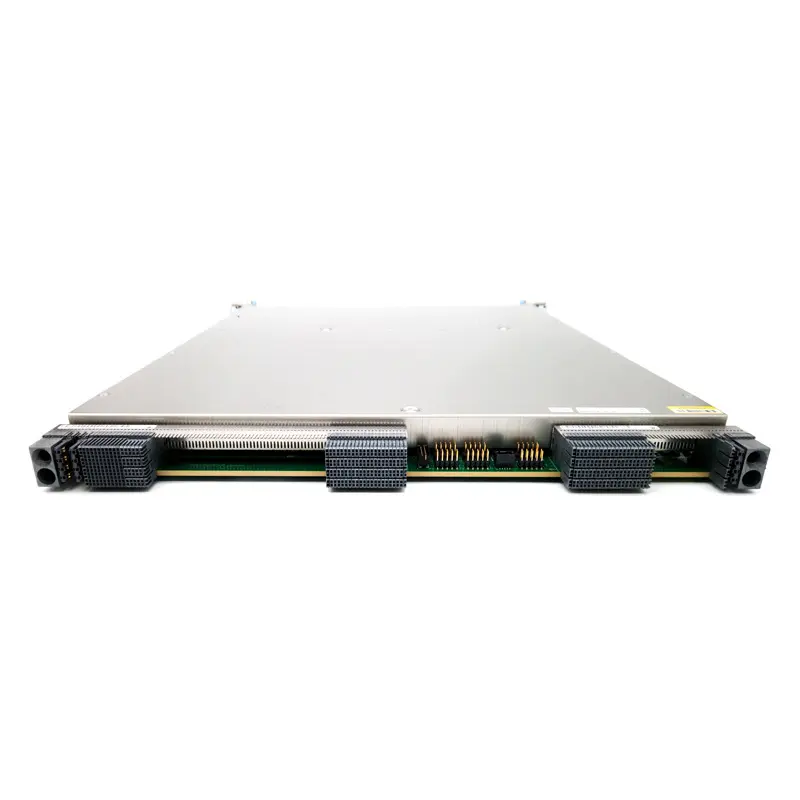

Juniper MPC Linecard MPC3E-3D-NG
product description
Description 130 Gbps capacity without hierarchical quality of service (HQoS)
Requires high-capacity fan trays and high-capacity filter trays
Weight: 15.96 lb (7.26 kg)
Model number: MPC3E-3D-NG
Name in the CLI: MPC3E NG PQ & Flex Q
Add-on license provides limited additional flexible queuing.
Hardware features Line-rate throughput of up to 130 Gbps
Supports WAN-PHY mode at 9.95 Gbps and LAN-PHY mode at 10.31 Gbps
Supports maximum transmission unit (MTU) size of 9,192 bytes for host bound packets. For Junos OS 16.1R1 and later releases, the MTU size supported is 9,500 bytes.

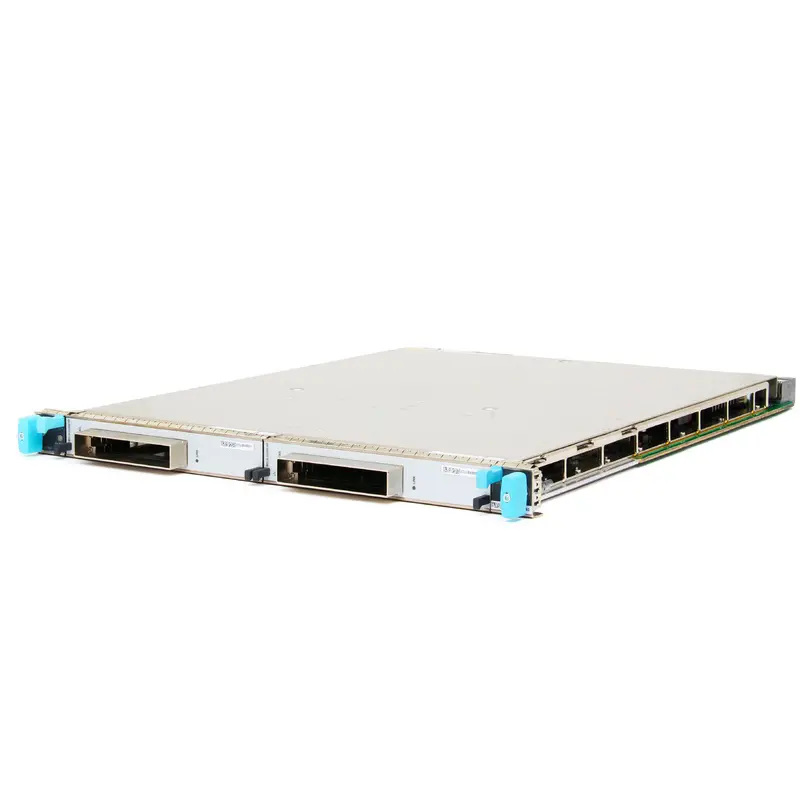

Two slots for MICs
Junos Trio chipsets for increased scaling for bandwidth, subscribers, and services
NOTE:
The non-HQOS MPC3E NG and MPC2E NG MPCs support MIC-3D-8CHOC3-4CHOC12 and MIC-3D-4CHOC3-2CHOC12 only with a limited queuing license.
NOTE:
The MPC3E-3D-NG requires high-capacity power supplies, high-capacity fan trays, and enhanced switch control boards (SCBE, SCBE2, or SCBE3) on MX240, MX480, and MX960 routers.
Software features
● Chained composite next hops
● Layer 3 VPN localization
● Detection of Layer 2 loops
● Entropy label support in mixed mode
● SNMP and CLI support for Routing Engine memory monitoring
● Mixed Mode LAG support on core interfaces
● Dynamic power management for MICs
● Support for flexible-queuing
● See Protocols and Applications Supported by the MPC3E on MX Series Routers for information about the protocols and applications that this MPC supports.
Power requirement Maximum with highest-power MICs at 55° C: 11.13 A @ 48 V (534 W)At different temperatures:55° C: 534 W
40° C: 485 W
25° C: 461 W
LEDs OK/FAIL LED, one bicolor:Steady green—MPC is functioning normally.
Blinking green—MPC is transitioning online or offline.
Red—MPC has failed.
