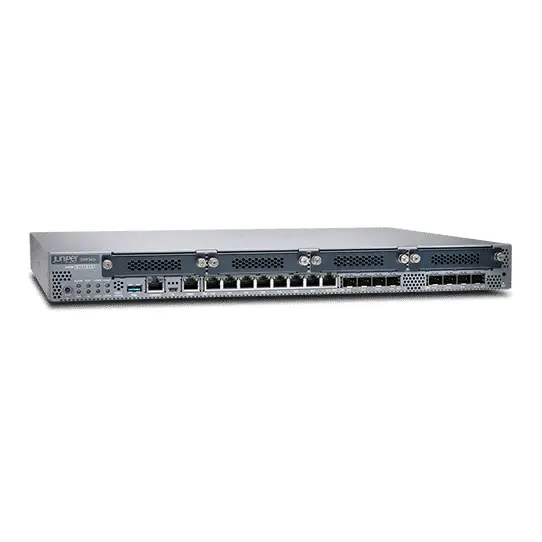

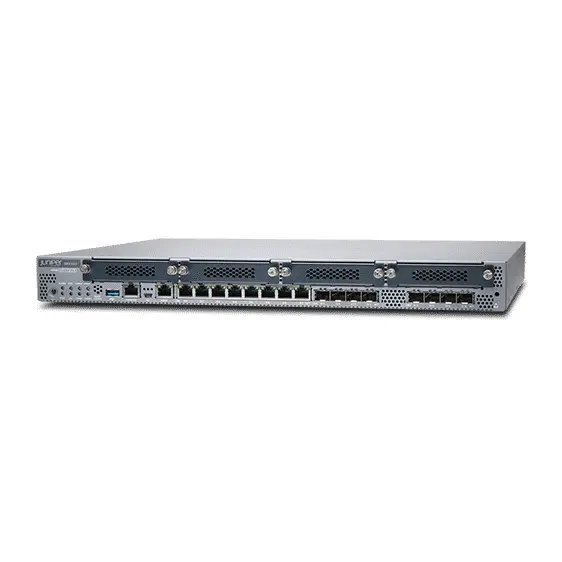

Juniper SRX Series SRX340 Firewall
Key Features
Firewall performance (max)
4.7 Gbps
IPS performance
400 Mbps
VPN performance
733 Mbps
Maximum concurrent sessions
256,000
SRX340: Securely connecting midsize distributed enterprise branch offices, the SRX340 firewall consolidates security, routing, switching, and WAN connectivity in a 1 U form factor. The SRX340 supports up to 4.7 Gbps firewall and 733 Mbps IPsec VPN in a single, cost-effective networking and security platform.
SRX340 Firewalls include hardware (16GbE, 4x MPIM slots, 4G RAM, 8G Flash, power supply, cable and RMK) and Junos Software Base (firewall, NAT, IPSec, routing, MPLS and switching)
Firewall Services
● Stateful and stateless firewall
● Zone-based firewall
● Screens and distributed denial of service (DDoS) protection
● Protection from protocol and traffic anomaly
● Integration with Pulse Unified Access Control (UAC)
● Integration with Aruba Clear Pass Policy Manager
● User role-based firewall
● SSL Inspection (Forward-proxy)
High Availability Features
● Virtual Router Redundancy Protocol (VRRP)
● Stateful high availability
● Dual box clustering
● Active/passive
● Active/active
● Configuration synchronization
● Firewall session synchronization
● Device/link detection
● In-Band Cluster Upgrade (ICU)
● Dial on-demand backup interfaces
● IP monitoring with route and interface failover
Total onboard ports : 16x1GbE
Onboard RJ-45 ports: 8x1GbE
Onboard small form-factor pluggable (SFP) transceiver ports: 8x1GbE
