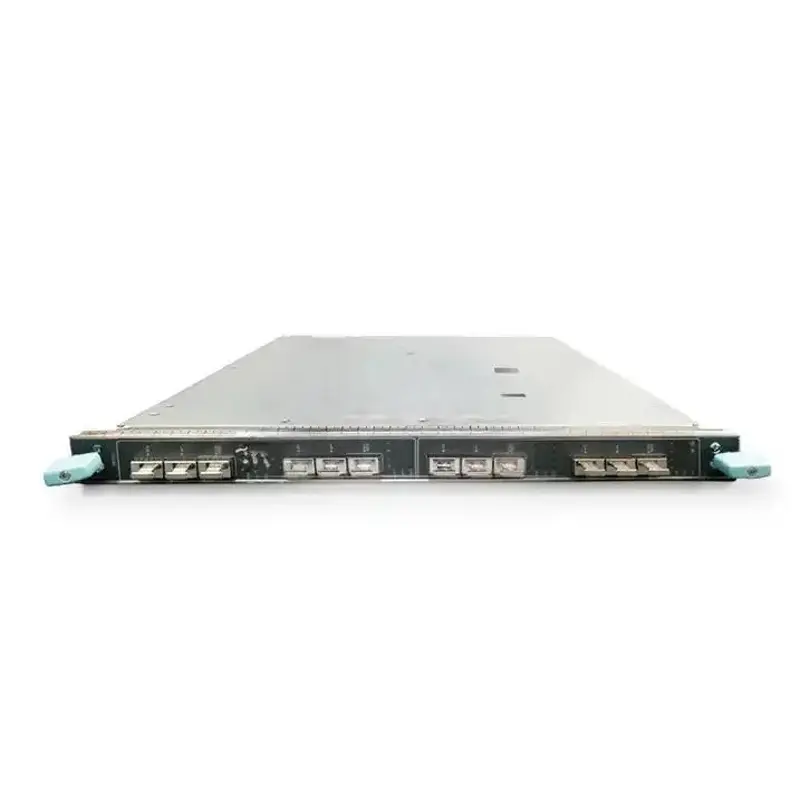

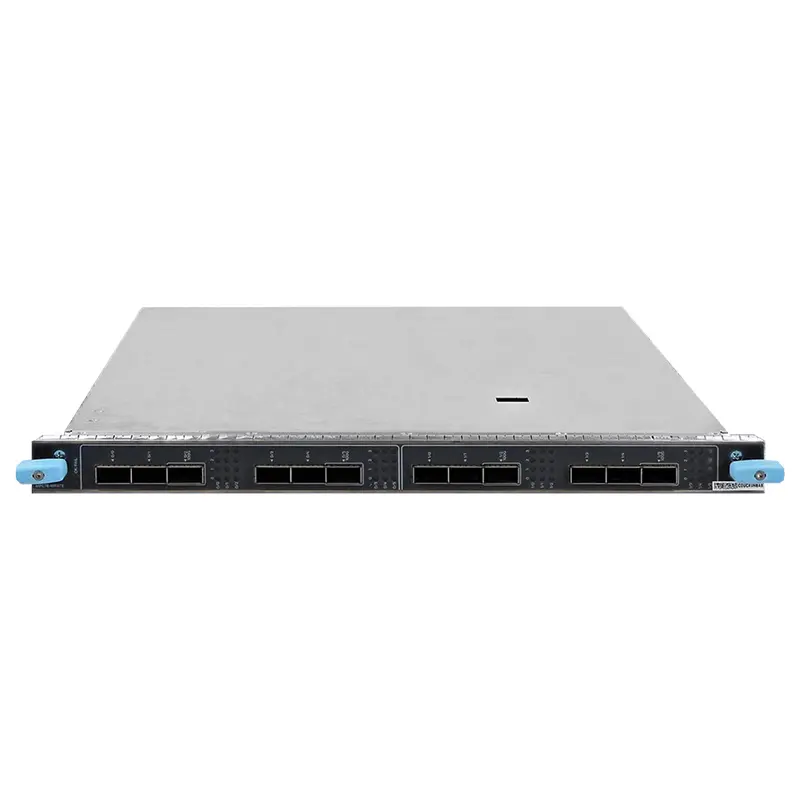

Juniper Lincard MPC7E-10G

40 x 10GE SFP + port line card, price includes full scale L2/L2.5, reduced scale L3 features, up to 2M routes in the FIB, up to 6M routes in the RIB, and up to 32 L3VPN instances per card, Optics sold separately.

product details

product description

Software release Junos OS Release 15.1F5 with Junos Continuity

Junos OS release 16.1R1 and later

Description Fixed-configuration MPC with forty 10-Gbps ports

Weight: 17 lb (7.7 kg)

Model number: MPC7E-10G

Name in the CLI: MPC7E 3D 40XGE

Hardware features

● Line-rate throughput of up to 400 Gbps on MX240, MX480, and MX960 routers.

● Line-rate throughput of up to 400 Gbps on MX2000 routers.

● Junos Trio chipsets for increased scaling for bandwidth, subscribers, and services.

● Forty 10-Gigabit Ethernet ports. The ports support SFP+ transceivers. Each port supports 10 Gbps or 1 Gbps speed.

● Requires high-capacity power supplies, high-capacity fan trays, and SCBE2 or SCBE3 switch control boards on MX240, MX480, and MX960 routers.

● Requires an adapter card to be housed in MX2000 routers.

● Supports maximum transmission units (MTUs) from 256 bytes through 16,000 bytes for transit traffic, and from 256 bytes through 9,500 bytes for host bound packets.

● The ports are labeled as (with the MPC orientation as shown in the figure):

● 0/0 through 0/9

● 0/10 through 0/19

● 1/0 through 1/9

● 1/10 through 1/19

Software features

Supports MACsec using the following encryption algorithms: gcm-aes-128, gcm-aes-xpn-128, gcm-aes-256, and gcm-aes-xpn-256.MACsec is supported at 10 Gbps and 1 Gbps speeds.

SupportsHyper mode to speed up packet processing.

Supports Flexible queuing using an add-on license to support 32,000 queues per line card, including queues on both ingress and egress interfaces. You can use an additional license to support up to 512,000 queues.

Optical diagnostics and related alarms

See Protocols and Applications Supported by the MPC7E for MX Series Routers for information about the protocols and applications that MPC7Es support.

NOTE: On MX240, MX480, and MX960 routers, MPC7E powers on only if the network-services mode on the router is configured as either enhanced-ip or enhanced-ethernet. On MX2000 routers, no additional configuration is required because by default the router operates in enhanced-ip mode.
