Juniper EX Series EX4100-F Ethernet Switch

Designed for branch deployments, the EX4100-F Ethernet Switches delivers a high-performance, cost-effective solution. With a -12 port fan-less compact, -24 port and -48 port in 1U, the EX4100-F is AI-driven, cloud-ready access switching platform. It’s differentiated by features such as EVPN-VXLAN, micro-segmentation using group-based policies (GBP), Power over Ethernet (PoE+) and flow-based telemetry.

Additionally, EX4100-F-12P (compact and fan-less) can be powered by an external Power Sourcing Equipment (PSE) as well as provide Power over Ethernet out to connected Powered Devices (PDs).

As part of the underlying infrastructure for Juniper Mist™ Wired Assurance, the EX4100-F is easy to onboard, configure, and manage. The Juniper Mist Cloud streamlines deploying and managing your campus fabric, while Mist AI™ simplifies operations and improves visibility into the performance of connected devices.

EX4100-F models:

EX4100-F-12P/T: 12 x 1GbE PoE/Non-PoE, 2 x 100M/1/2.5/5/10 GbE uplinks, and 4 x 10GbE stacking/uplinks

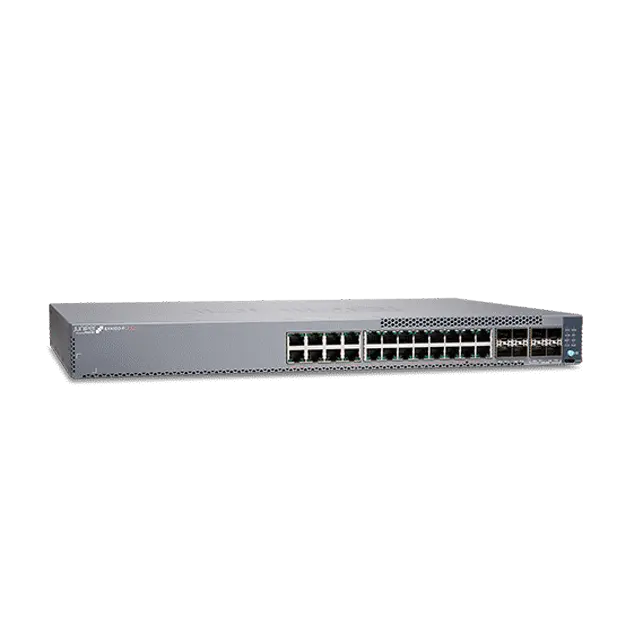

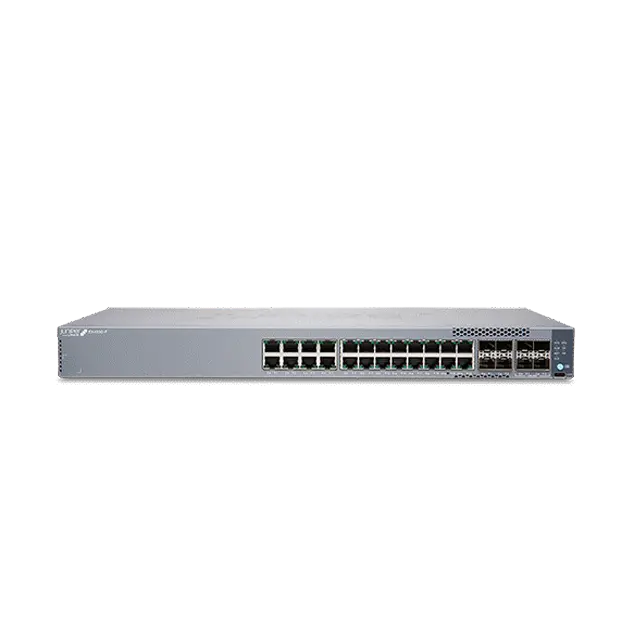

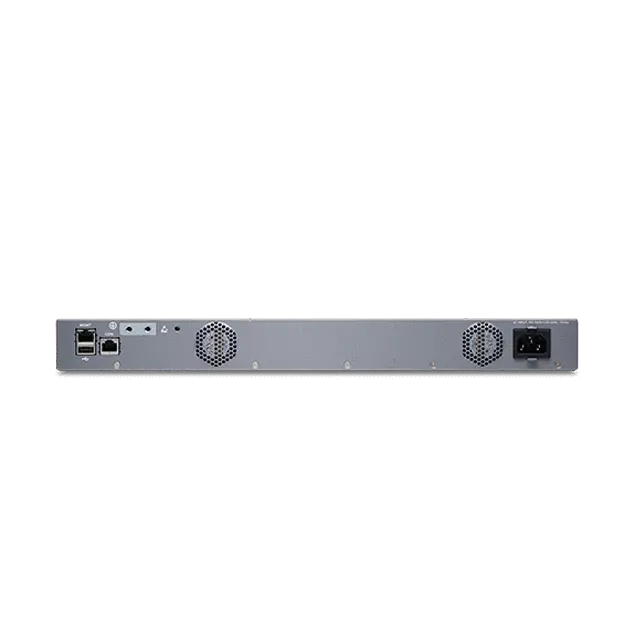

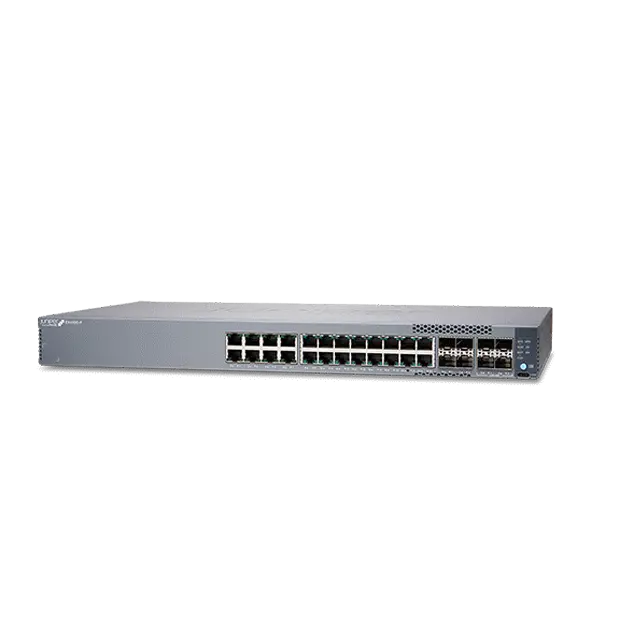

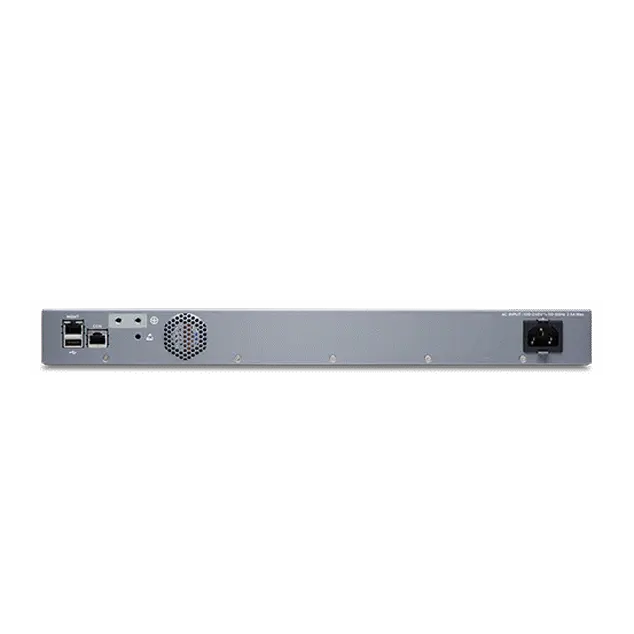

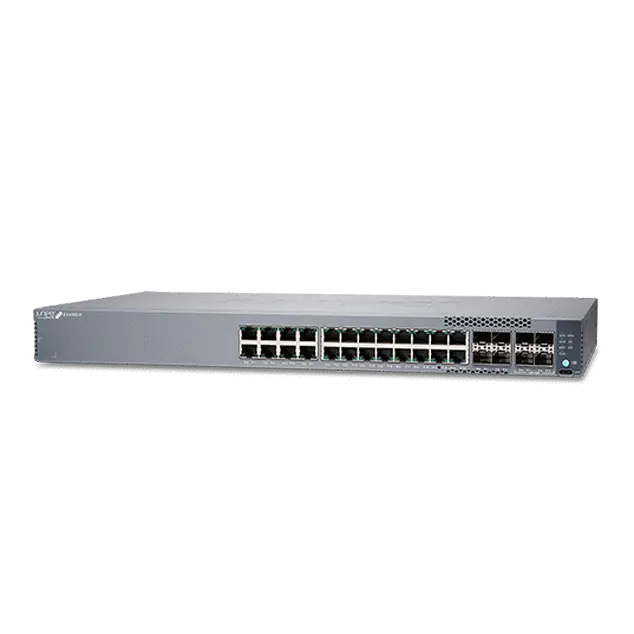

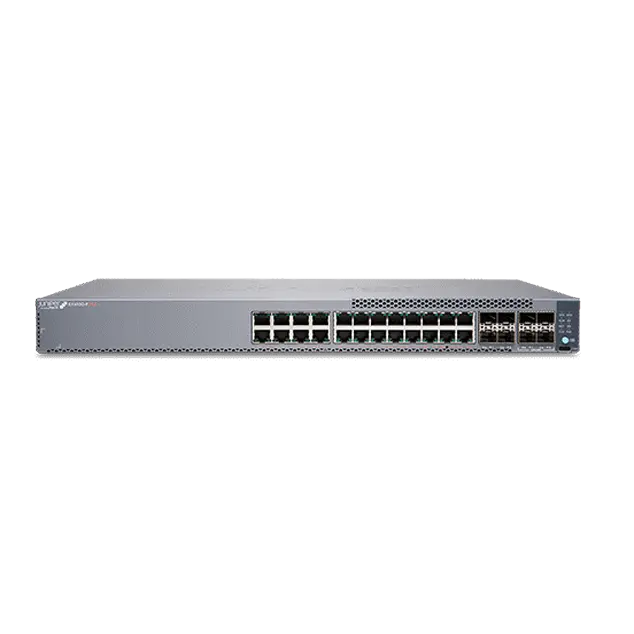

EX4100-F-24P/T: 24 x 1GbE PoE/Non-PoE, 4 x 1/10GbE uplinks, and 4 x 10GbE stacking/uplinks

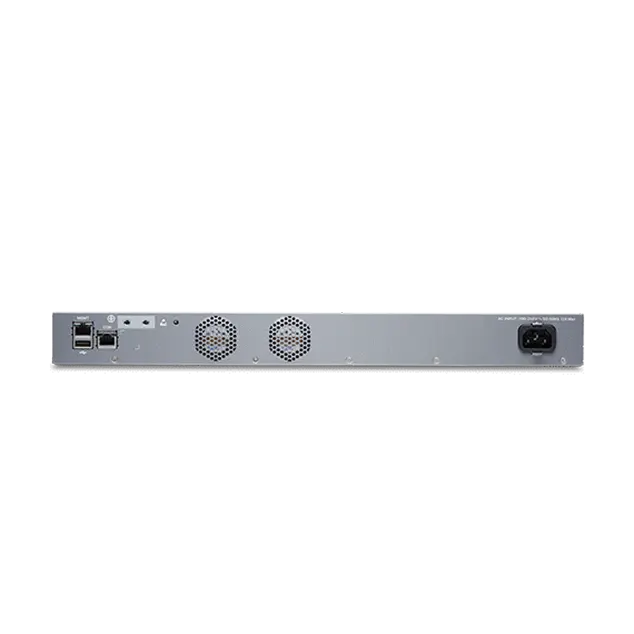

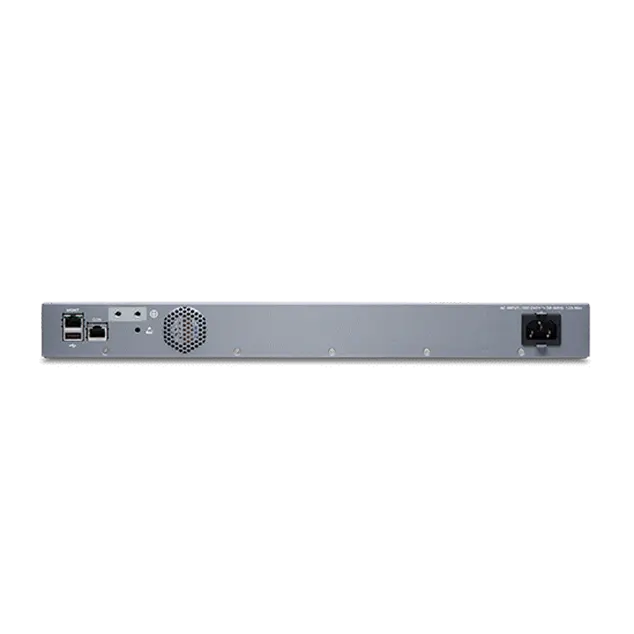

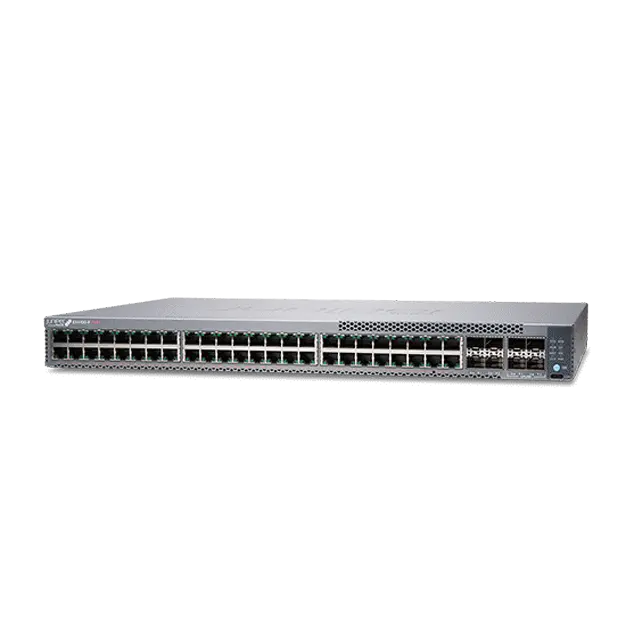

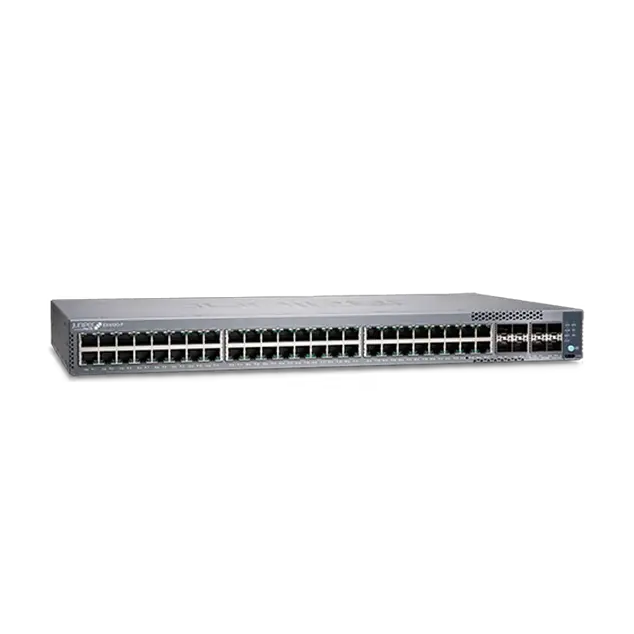

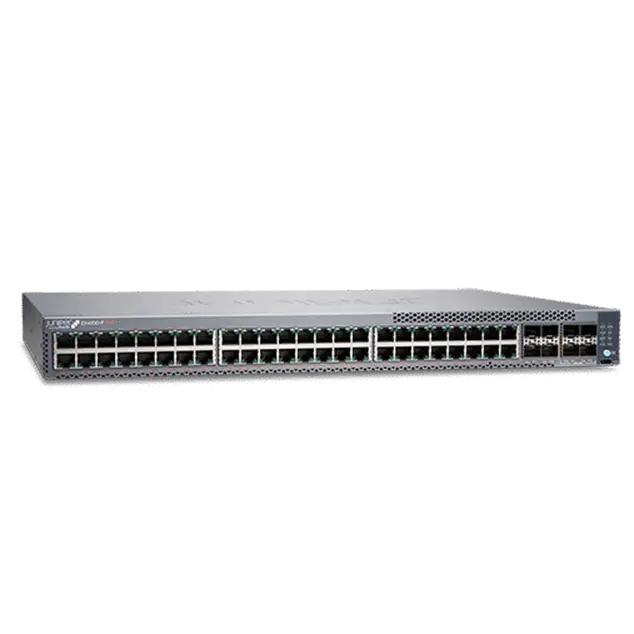

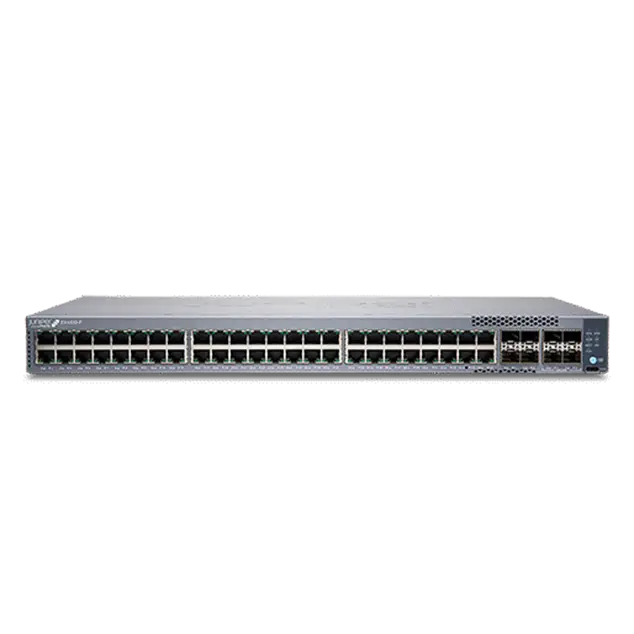

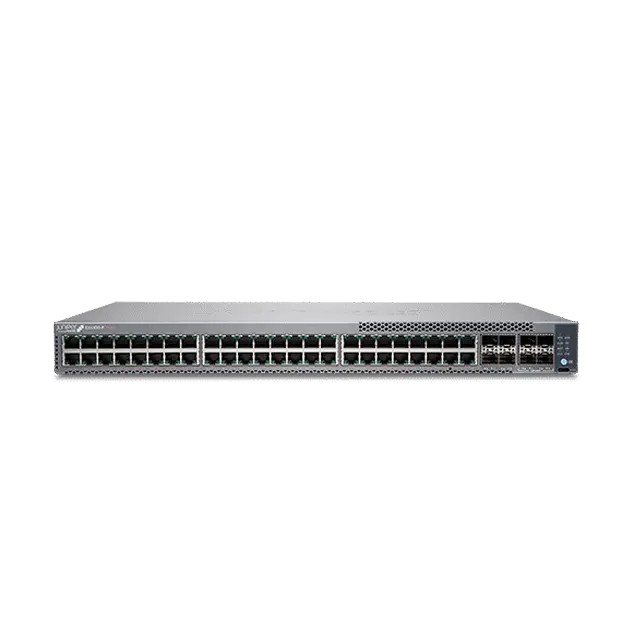

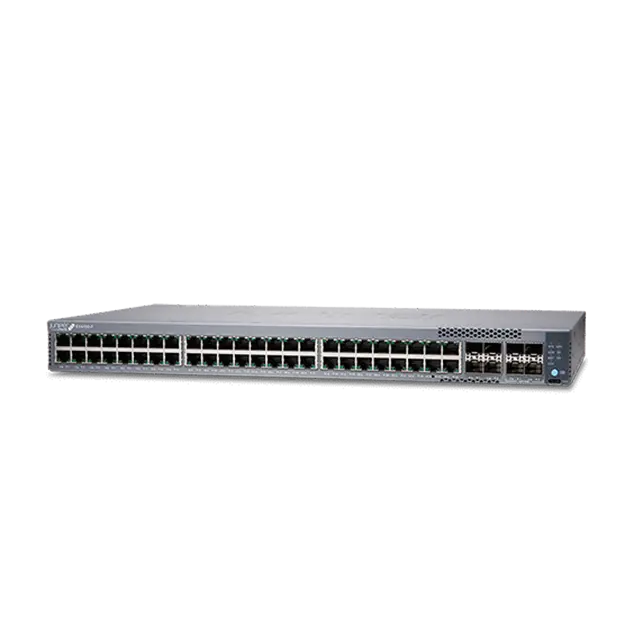

EX4100-F-48P/T: 48 x 1GbE PoE/Non-PoE, 4 x 1/10GbE uplinks, and 4 x 10GbE stacking/uplinks

product details

Key Features

Port density

1GbE access ports, 1/10 GbE uplink/stacking, 100M/1/2.5/5/10 GbE uplink

Form factor

1 RU

Power

PoE+ up to 30W per port, 180W* PoE for EX4100-F-12P, 370W PoE for EX4100-F-24P, and 740W PoE for EX4100-F-48P

*180W PoE budget with AC adapter and up to 300W PoE budget with AC adapter and Uplink PD Ports.

Switching capacity

256 Gbps

Fabric

EVPN-VXLAN, Virtual Chassis

Features + Benefits

AI-Driven Switching

Onboard (day 0), provision (day 1), and manage (day 2+) the EX4100-F from the cloud with Juniper Mist Wired Assurance, using AI-driven automation and insights to deliver improved experiences for IT staff, end users, and connected devices.

Streamline IT operations, reduce mean time to repair, and deliver a new generation of wired and wireless networks. The EX4100-F provides rich streaming telemetry data for insights into switch health and wired service-level expectations (SLEs) for pre- and post-connection metrics.

End-to-End Campus Fabrics

Scale with ease, build resiliency, and streamline management with Virtual Chassis and EVPN-VXLAN-based campus fabrics, which help to simplify configuring and maintaining multiple devices.

Microsegmentation

Standards-based microsegmentation using group-based policies (GBP) leverages underlying VXLAN technology to provide agnostic endpoint access control for consistent security policies and granular control of application, business function, or user tags.

Flow-Based Telemetry

Enables per-flow level analytics, so you can monitor thousands of traffic flows per switch without impacting the CPU.

PoE, PoE+, and Fast and Perpetual PoE

The EX4100-F offers fast and perpetual PoE that enables consistent power to be provided to the endpoints, even when the switch is rebooting. The switch also support a fast PoE capability that delivers PoE power to connected endpoints during a switch power-up, even before the switch is fully operational.

Precision Time Protocol Clock Built In (PTP)

EX4100-F switches support Precision Time Protocol (PTP), also known as IEEE 1588v2.
