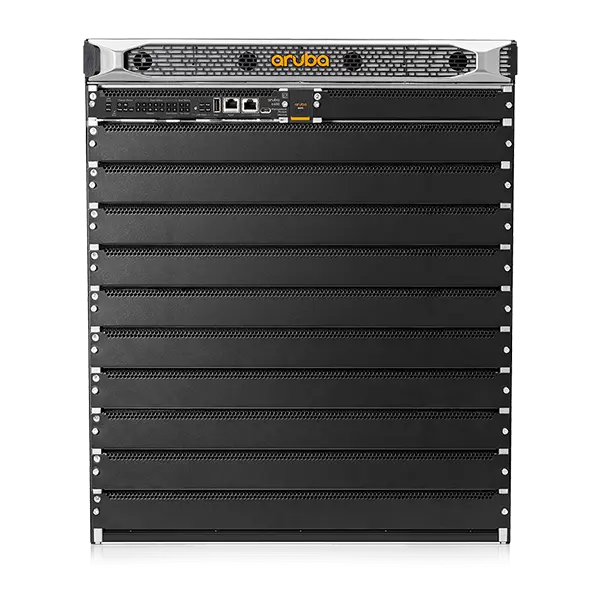

    HPE Aruba Networking CX 6400 Switch Series

    A modern, intelligent family of high-availability switches ideal for use from edge access to core and into the data center, including spine-leaf architectures and EVPN-VXLAN fabrics.

      Contact us
      product details

      Performance

      ●System Switching Capacity: up to 28 Tbps
      ●System Throughput Capacity: up to 11.4 Bpps

      Models

      HPE Aruba Networking 6405 v2 Switch (R0X26C)
      ●1x 6405 Chassis Switch (R0X24A)
      ●1x Management Module (R0X31A)
      ●2x Fan Trays (R0X32A)
      ●5 open module slots
      ●Power supply units ordered separately
      ●Dimensions: (H) 30.66 cm x (W) 44.26 cm x (D) x 44.85 cm (12.1" x 17.5" x 17.7")
      ●Weight: 29.3 kg (64.7 lbs)

      HPE Aruba Networking 6410 v2 Switch (R0X27C)
      ●1x 6410 Chassis Switch (R0X25A)
      ●1x Management Module (R0X31A)
      ●4x Fan Trays (R0X32A)
      ●10 open module slots
      ●Power supply units ordered separately
      ●Dimensions: (H) 52.88 cm x (W) 44.26 cm x (D) 44.85 cm (20.8" x 17.5" x 17.7")
      ●Weight: 53.5 kg (118.2 lbs)

      Management ports

      ●1x USB-C Console Port
      ●1x OOBM port
      ●1x USB Type A Host port
      ●1x Bluetooth adapter for use with Aruba CX Mobile App

      POE power

      ●Up to 146 ports of 90W IEEE 802.3bt High Power PoE

      Mounting

      ●Cable management kit included. 2-post rack mounting kit included. 4-post rack mounting kit available separately.

      Modules

      ●Aruba 6400 Management Module (R0X31A)
      ●Aruba 6400 48p 1GbE CLS4 PoE Mod (R0X38B)
      ●Aruba 6400 48-port 1GbE Class 4 PoE v2 Module (R0X38C)
      ●Aruba 6400 48p 1GbE CLS4 PoE 4SFP56 Mod (R0X39B)
      ●Aruba 6400 48-port 1GbE Class 4 PoE and 4-port SFP56 v2 Module (R0X39C)
      ●Aruba 6400 48p 1GbE CLS6 PoE 4SFP56 Mod (R0X40B)
      ●Aruba 6400 48-port 1GbE Class 6 PoE and 4-port SFP56 v2 Module (R0X40C)
      ●Aruba 6400 48p Smart Rate CLS6 PoE 4SFP56 Mod (R0X41A)
      ●Aruba 6400 48-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 v2 Module (R0X41C)
      ●Aruba 6400 24p 10GT 4SFP56 Mod (R0X42A)
      ●Aruba 6400 24-port 10Gbase-T and 4-port SFP56 v2 Module (R0X42C)
      ●Aruba 6400 24p SFP+ 4SFP56 Mod (R0X43A)
      ●Aruba 6400 24-port SFP+ and 4-port SFP56 v2 Module (R0X43C)
      ●Aruba 6400 48p 10G/25G SFP28 Mod (R0X44A)
      ●Aruba 6400 12p 40G/100G QSFP28 Mod (R0X45A)
      ●Aruba 6400 12p 40G/100G QSFP28 Mod (R0X45A)
      ●Aruba 6400 48p 10G/25G SFP28 v2 Mod (R0X44C)
      ●Aruba 6400 12p 40G/100G QSFP28 v2 Mod (R0X45C)
      ●HPE Aruba Networking CX 6400 32p 25G SFP28 4p 100G QSFP28 MACsec v2 Extended Tables Module (S0E48A)
      ●HPE Aruba Networking CX 6400 24p Smart Rate 1G/2.5G/5G/10G Class8 PoE and 4p SFP56 v2 Module (S1T83A)

      Power supplies

      ●Aruba 6400 1800W PS w/C16 Inlet Accessory (R0X35A)
      ●Aruba 6400 3000W PS w/C20 Inlet Accessory (R0X36A)

      Fan Tray

      ●Aruba 6400 Fan Tray (R0X32A)

      Mounting Kit

      ●Aruba 6400 4-post Rack Mount Kit (R0X37A)
