    HPE Aruba Networking CX 6300 Switch Series

    This modern, flexible, and intelligent stackable switch series is ideal for enterprise network access, aggregation, core, and data center top of rack (ToR) deployments.

      Contact us
      product details

      Performance

      ●System Switching Capacity:
          ●R8S89A, R8S90A, R8S92A, S3L75A, S3L76A: 780 Gbps
          ●R8S91A, S3L77A: 720 Gbps
          ●JL662A, JL664A: 448 Gbps
          ●JL663A, JL762A: 496 Gbps
          ●JL665A, JL666A, JL667A, JL668A, JL658A, JL659A, JL660A, JL661A: 880 Gbps
          ●S0E91A: 1760 Gbps
      ●System Throughput Capacity:
          ●R8S89A, R8S90A, R8S92A, S3L75A, S3L76A: 580 Mpps
          ●R8S91A, S3L77A: 535 Mpps
          ●JL662A, JL664A: 334 Mpps
          ●JL663A, JL762A: 369 Mpps
          ●JL665A, JL666A, JL667A, JL668A, JL658A, JL659A, JL660A, JL661A: 660 Mpps
          ●S0E91A: 1310 Mpps
      ●Stack Size: 10 member using 10G SFP ports
      ●Max. Stacking Distance: Up to 10 kms with long range transceivers
      ●Stacking Bandwidth: 200 Gbps (S0E91A: 400 Gbps)

      Models

      CX 6300F Switches

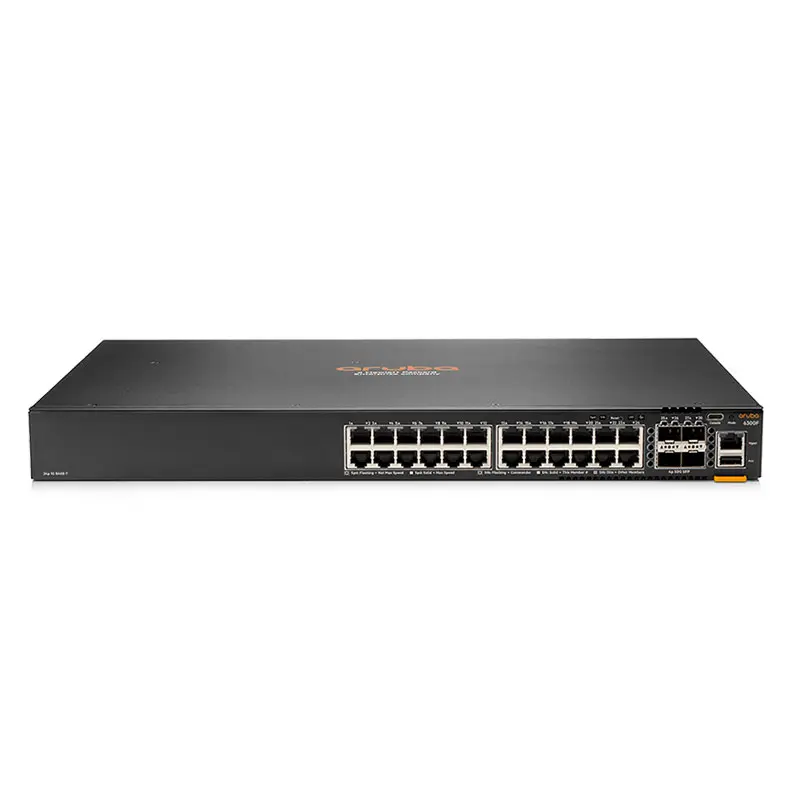

      HPE Aruba Networking 6300F 24-port 1GbE and 4-port SFP56 Switch (JL668A)
      ●24x ports 10/100/1000BaseT ports
      ●4x 1/10/25/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      ●Internal (fixed) power supply (200W), fixed fans
      ●Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73" x 17.4" x 12.9")
      ●Weight: 4.36 kg (9.61 lbs)
      ●TAA model SKU: S0G98A

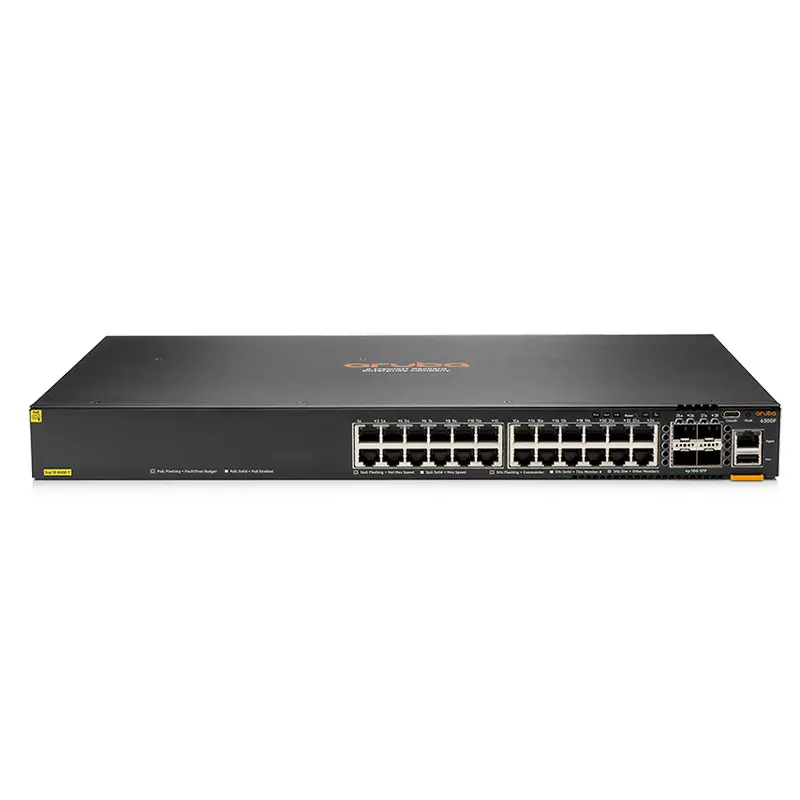

      HPE Aruba Networking 6300F 24-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL666A)
      ●24x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
      ●4x 1/10/25/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      ●Internal (fixed) power supply (950W), fixed fans
      ●Up to 370W of PoE+
      ●Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73" x 17.4" x 12.9")
      ●Weight: 4.95 kg (10.91 lbs)
      ●TAA model SKU: S0G96A

      HPE Aruba Networking 6300F 48-port 1GbE and 4-port SFP56 Switch (JL667A)
      ●48x ports 10/100/1000BaseT ports
      ●4x 1/10/25/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      ●Internal (fixed) power supply (200W), fixed fans
      ●Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73" x 17.4" x 12.9")
      ●Weight: 4.46 kg (9.83 lbs)
      ●TAA model SKU: S0G97A

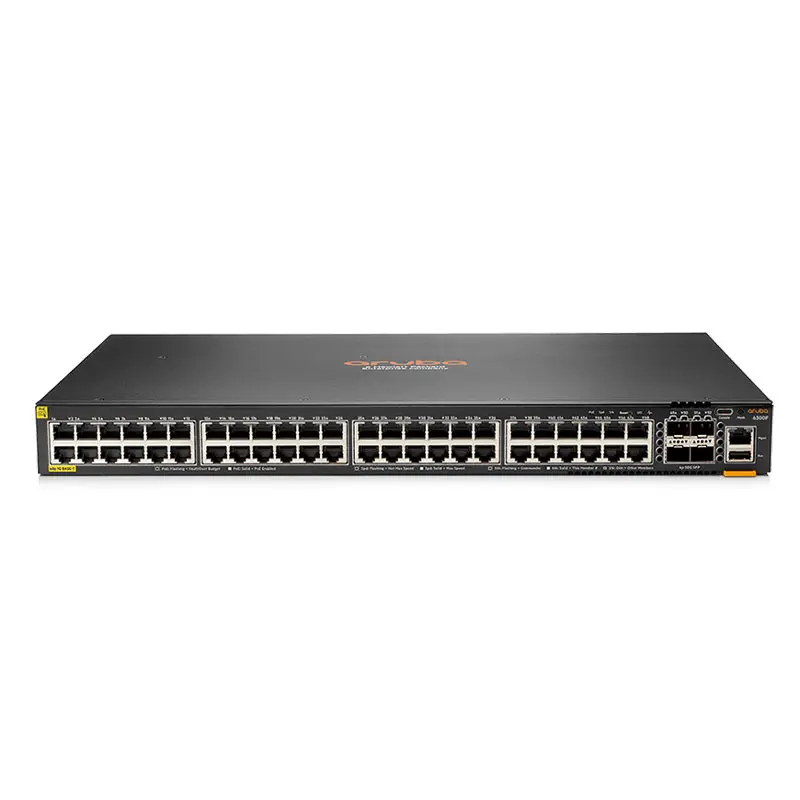

      HPE Aruba Networking 6300F 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL665A)
      ●48x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
      ●4x 1/10/25/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      ●Internal (fixed) power supply (950W), fixed fans
      ●Up to 720W of PoE+
      ●Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73" x 17.4" x 12.9")
      ●Weight: 5.10 kg (11.24 lbs)
      ●TAA model SKU: S0G95A

      CX 6300M Switches

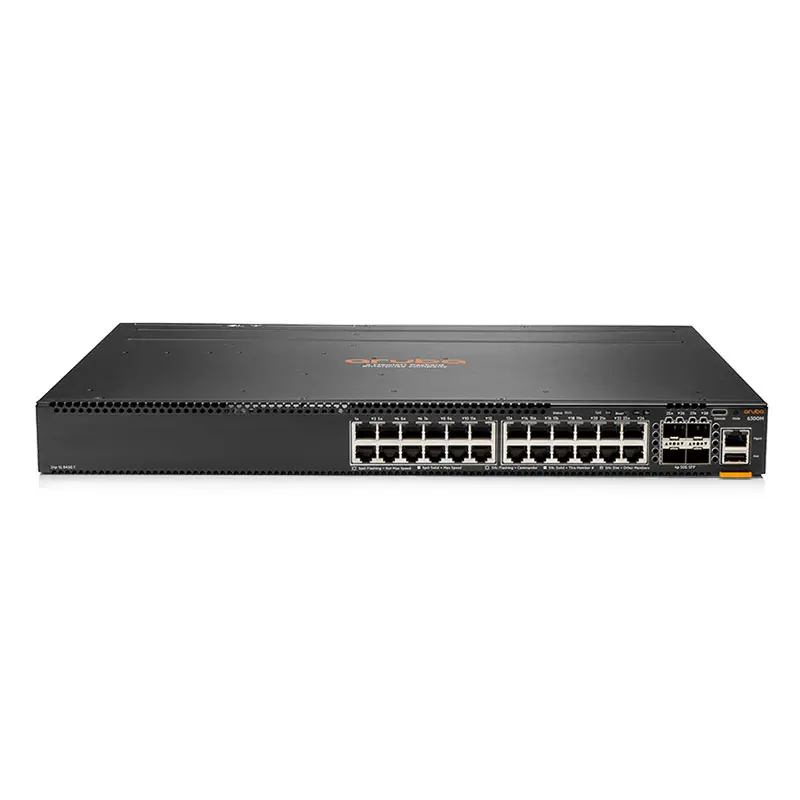

      HPE Aruba Networking 6300M 24-port 1GbE and 4-port SFP56 Switch (JL664A)
      ●24x ports 10/100/1000BaseT ports
      ●4x 1/10/25/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)/li>
      ●2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      ●One field-replaceable, hot-swappable fan tray (included), one empty slot
      ●Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      ●Weight: 5.43 kg (11.97 lbs)
      ●TAA model SKU: S0G01A

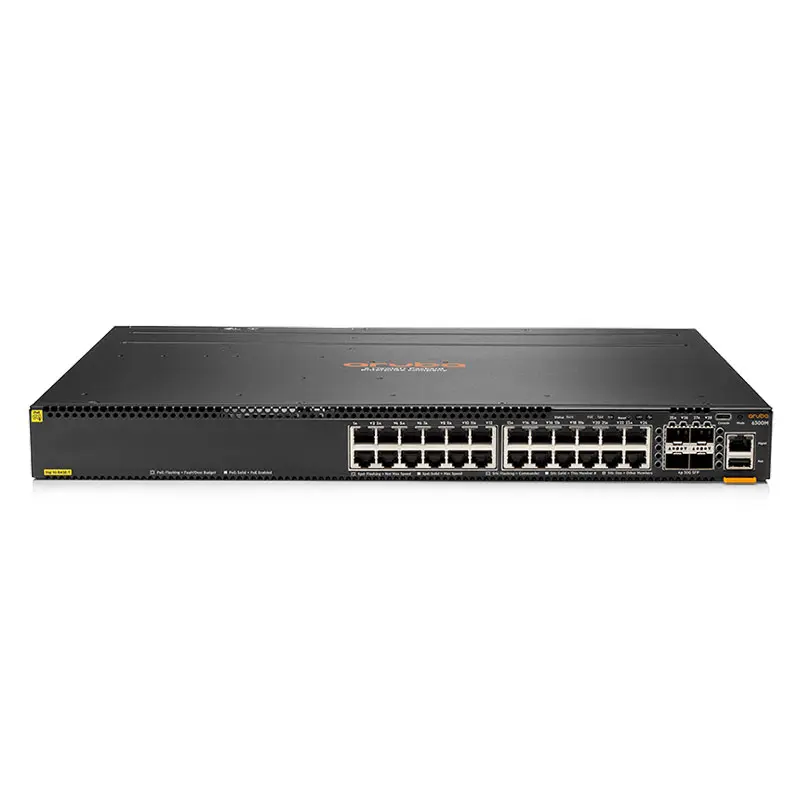

      HPE Aruba Networking 6300M 24-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL662A)
      ●24x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
      ●4x 1/10/25/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      ●2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      ●24 ports of full redundancy PoE+ Power with two 1600W PSUs
      ●One field-replaceable, hot-swappable fan tray (included), one empty slot
      ●Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      ●Weight: 5.55 kg (12.23 lbs)
      ●TAA model SKU: S0F99A

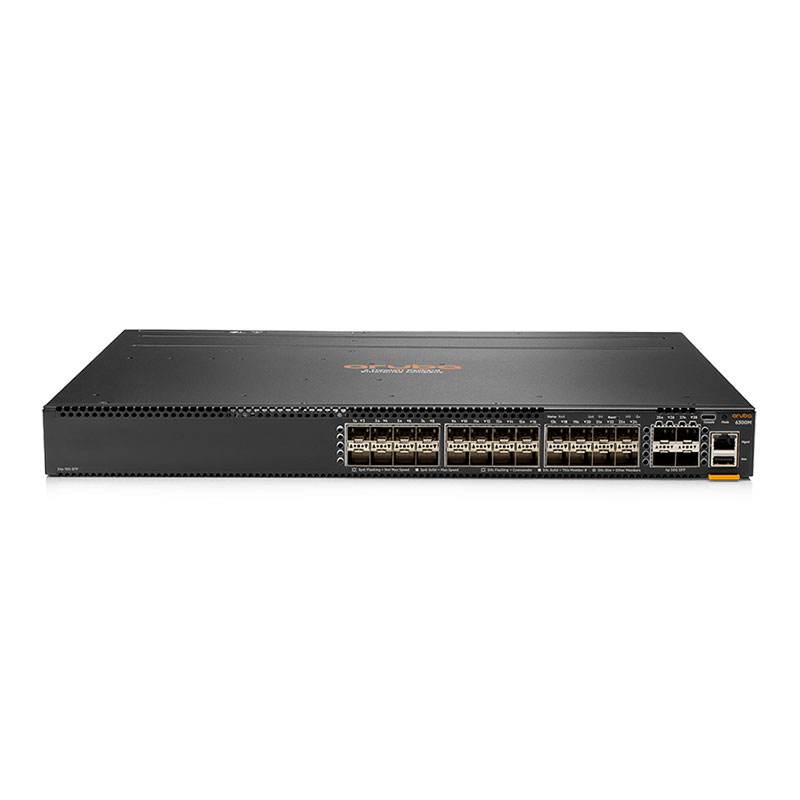

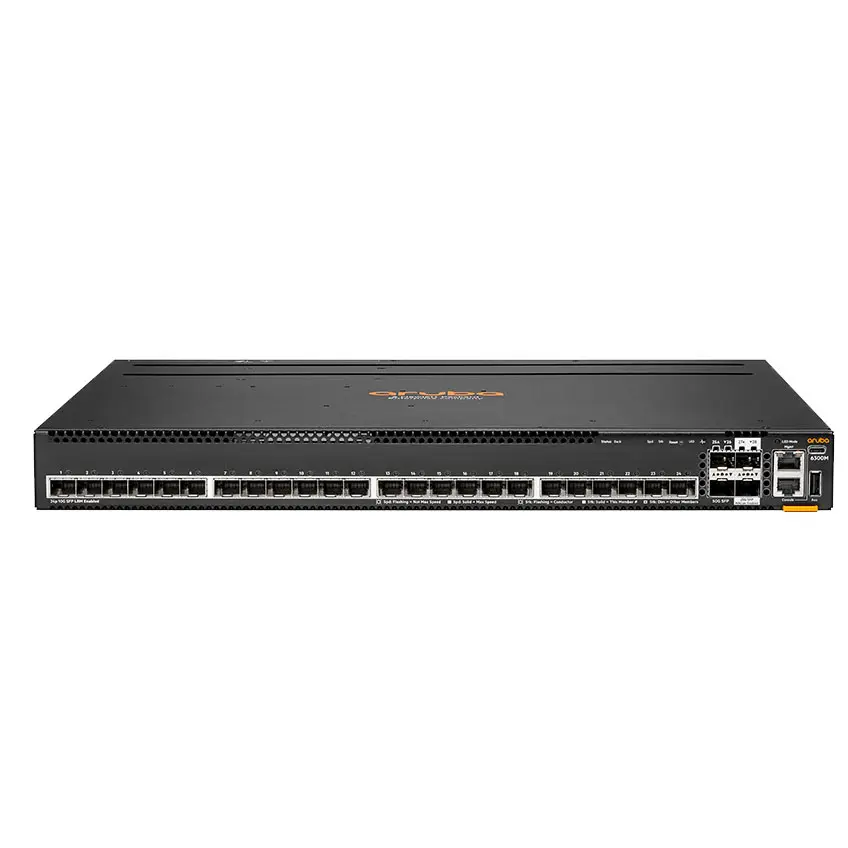

      HPE Aruba Networking 6300M 24-port SFP+ and 4-port SFP56 Switch (JL658A)
      ●24x 1G/10G SFP+ ports
      ●4x 1/10/25/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      ●2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      ●Two field-replaceable, hot-swappable fan trays (included), no empty slot
      ●Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      ●Weight: 5.8 kg (12.78 lbs)
      ●TAA model SKU: S0G03A
      ●HPE Aruba Networking 6300M 24p SFP+ LRM support and 2p 50G and 2p 25G MACSec Switch (R8S92A)
      ●24x 1G/10G SFP+ ports (LRM + MACSEC)
      ●2x 10G/25G/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      ●2x 10G/25G SFP ports (MACSEC)
      ●2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      ●Two field-replaceable, hot-swappable fan trays (included), no empty slot
      ●Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      ●Weight: 4.85 Kg (10.70 lbs)

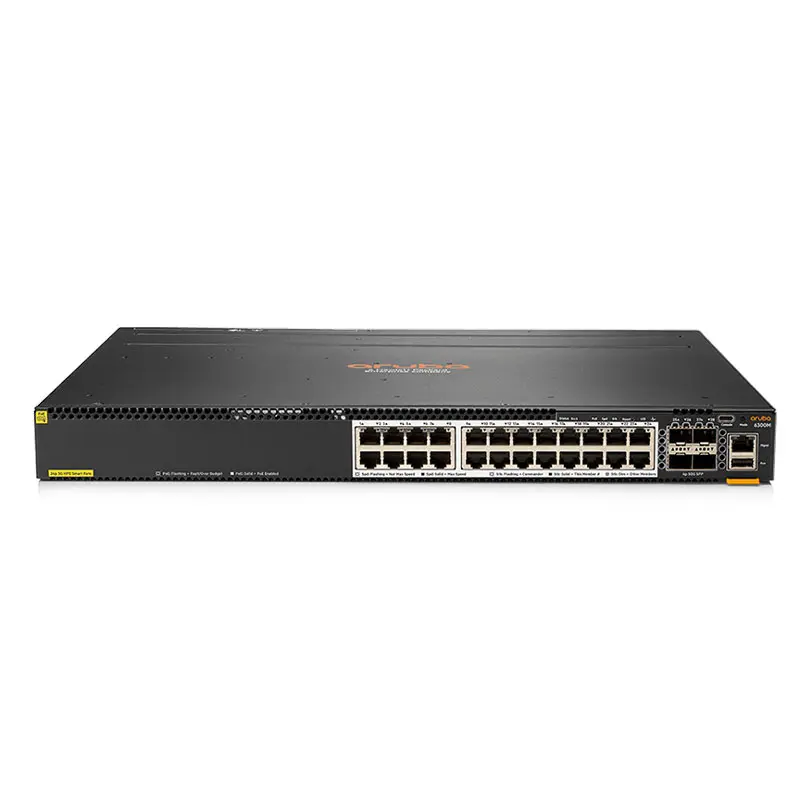

      HPE Aruba Networking 6300M 24-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 Switch (JL660A)
      ●24x ports Smart Rate 100M/1G/2.5G/5GBaseT Class 6 PoE ports supporting up to 60W per port
      ●4x 1/10/25/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      ●2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      ●Delivers up to 1440W of Class 6 PoE Power
      ●One field-replaceable, hot-swappable fan tray (included), one empty slot
      ●Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      ●Weight: 6.06 (13.36 lbs)
      ●TAA model SKU: S0G05A

      HPE Aruba Networking 6300M 24p HPE Smart Rate 1G/2.5G/5G/10G Class 6 PoE and 2p 50G and 2p 25G Switch (R8S89A)
      ●24x ports SmartRate 100M/1G/2.5G/5G/10G BaseT Class 6 PoE ports supporting up to 60W per port
      ●2x 10G/25G/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      ●2x 10G/25G SFP ports (MACSEC)
      ●2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      ●Two field-replaceable, hot-swappable fan trays (included), no empty slot
      ●Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      ●Weight: 5.26 Kg (11.60 lbs)

      HPE Aruba Networking 6300M 48-port 1GbE and 4-port SFP56 Power-to-Port 2 Fan Trays 1 PSU Bundle (JL762A)
      ●48x ports 10/100/1000BaseT ports
      ●4x 1/10/25/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      ●2 field-replaceable, hot-swappable power supply slots and comes with 1 Power-to-Port power supply (JL760A) installed. Additional Power-to-Port power supply can be ordered separately. Supports JL760A power-supply only
      ●Two field-replaceable, hot-swappable fan trays (included), no empty slot. Supports JL761A Pwr2Prt Fan Tray only
      ●Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      ●Weight: 1 PSU 5.7 kg (12.5 lbs); 2 PSU 6.27 kg(13.8 lbs)
      ●TAA model SKU: S0G02A

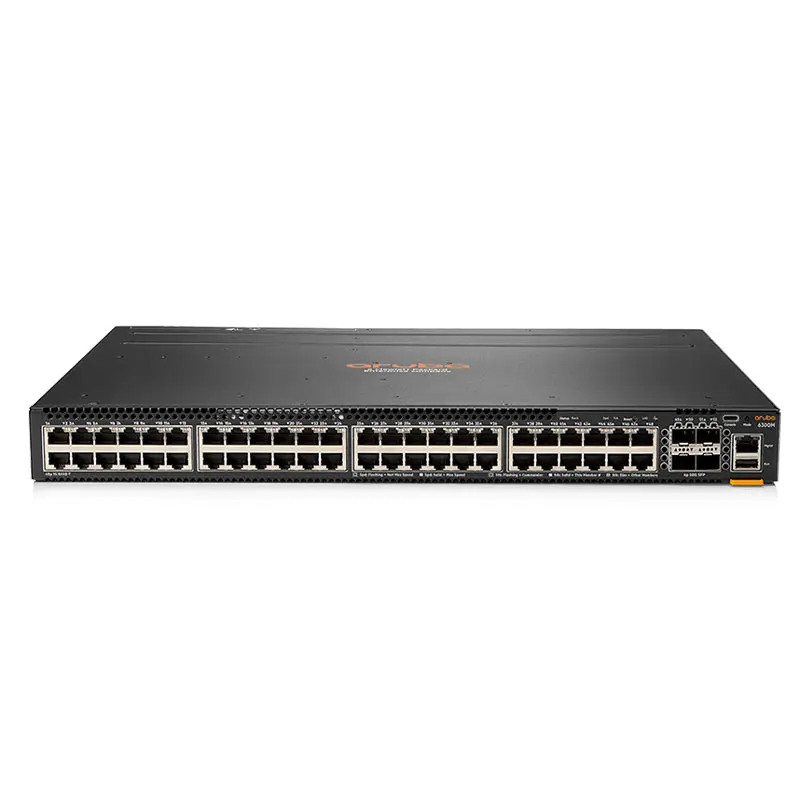

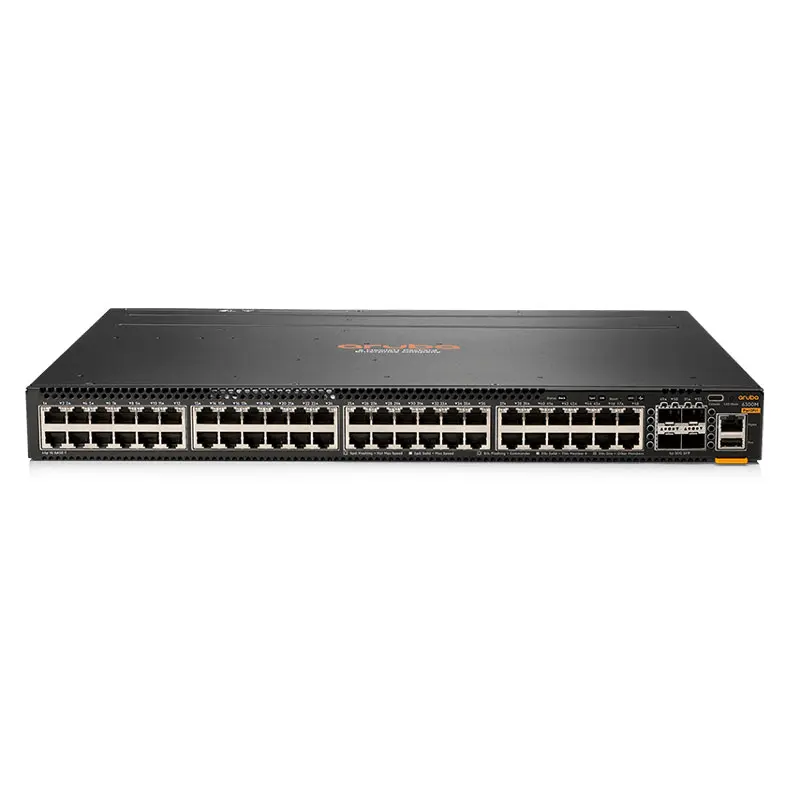

      HPE Aruba Networking 6300M 48-port 1GbE and 4-port SFP56 Switch (JL663A)
      ●48x ports 10/100/1000BaseT ports
      ●4x 1/10/25/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      ●2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      ●One field-replaceable, hot-swappable fan tray (included), one empty slot
      ●Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      ●Weight: 5.51 kg (12.14 lbs)
      ●TAA model SKU: S0G00A

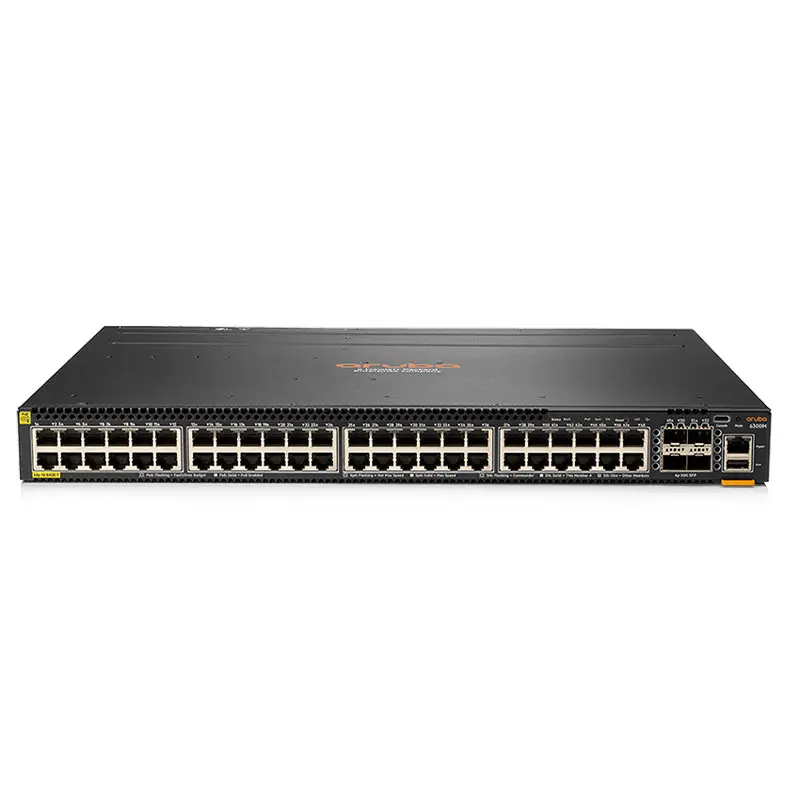

      HPE Aruba Networking 6300M 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL661A)
      ●48x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
      ●4x 1/10/25/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      ●2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      ●48 ports of full redundancy PoE+ Power with two 1600W PSUs
      ●One field-replaceable, hot-swappable fan tray (included), one empty slot
      ●Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      ●Weight: 5.72 kg (12.61 lbs)
      ●TAA model SKU: S0G06A

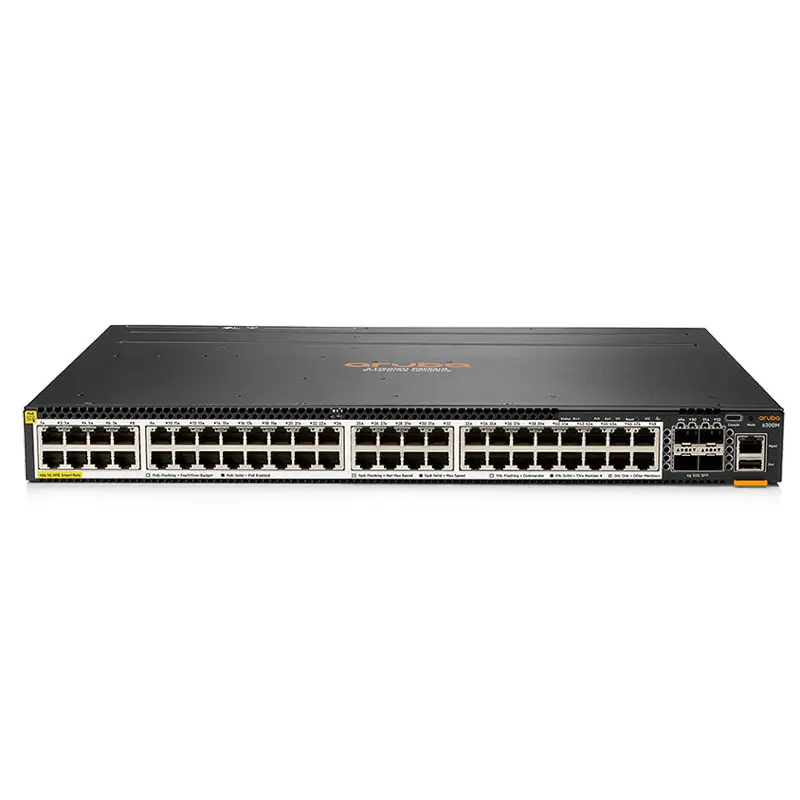

      HPE Aruba Networking 6300M 48-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 Switch (JL659A)
      ●48x ports Smart Rate 100M/1G/2.5G/5GBaseT Class 6 PoE ports supporting up to 60W per port
      ●4x 1/10/25/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      ●2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      ●Delivers up to 2880W of Class 6 PoE Power
      ●Two field-replaceable, hot-swappable fan trays (included), no empty slot
      ●Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      ●Weight: 6.71 kg (14.8 lbs)
      ●TAA model SKU: S0G04A

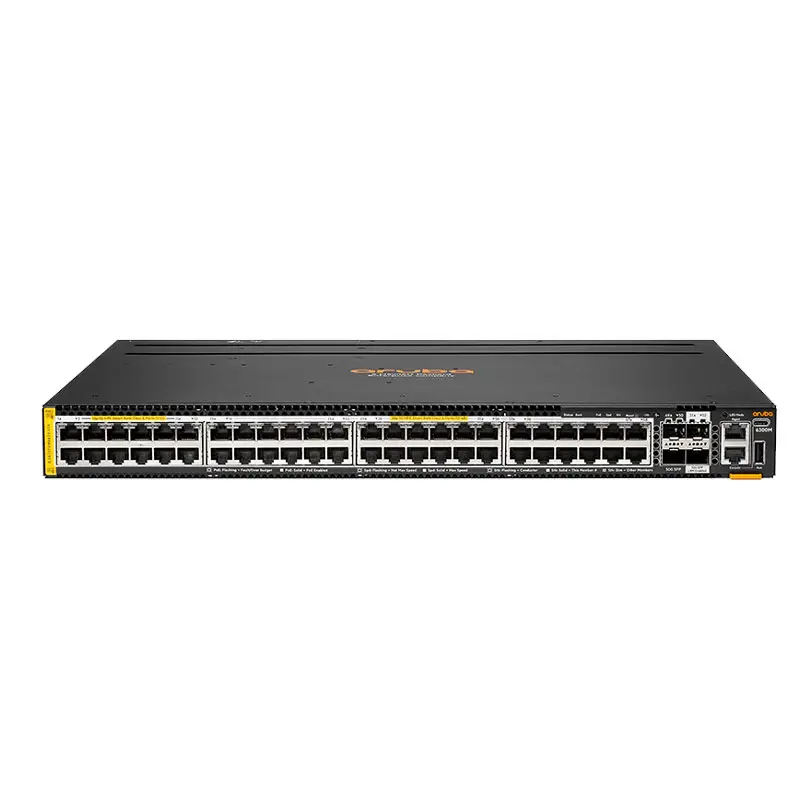

      HPE Aruba Networking 6300M 12p Class 8 PoE and 36p Class 6 PoE HPE Smart Rate 1G/2.5G/5G and 2p 50G and 2p 10G Switch (R8S91A)
      ●48x ports SmartRate 100M/1G/2.5G/5G BaseT Class 8 PoE ports supporting up to 90W per port (on port 1-12), and Class 6 POE ports supporting up to 60W per port (on ports 13-48)
      ●2x 10G/25G/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      ●2x 1/10G SFP ports (LRM + MACSEC)
      ●2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      ●Two field-replaceable, hot-swappable fan trays (included), no empty slot
      ●Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      ●Weight: 5.47 Kg (12.06 lbs)

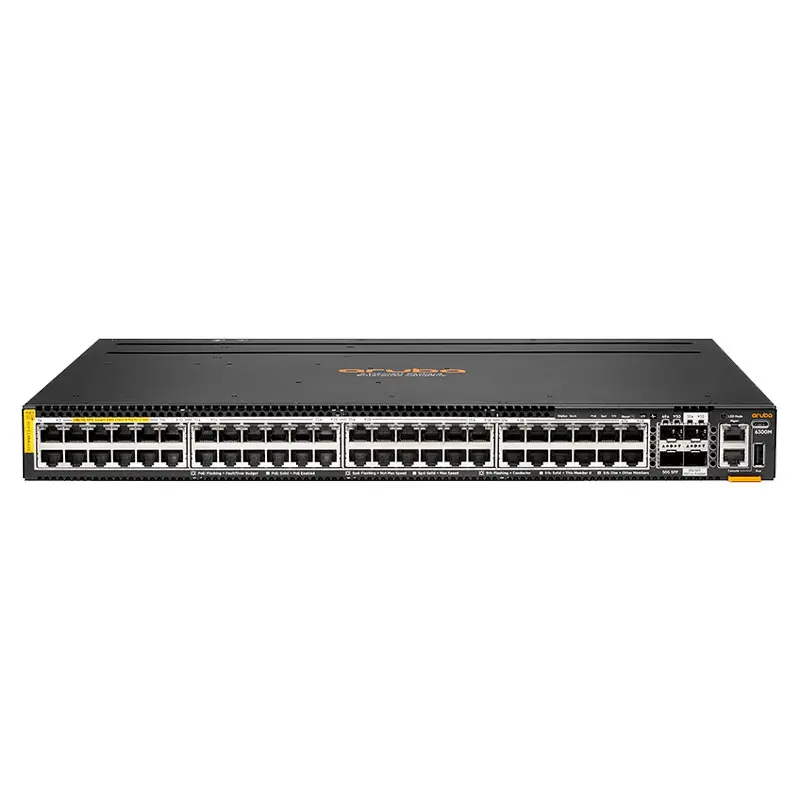

      HPE Aruba Networking 6300M 48p HPE Smart Rate 1G/2.5G/5G Class 8 PoE and 2p 50G and 2p 25G Switch (R8S90A)
      ●48x ports SmartRate 100M/1G/2.5G/5G BaseT Class 8 PoE ports supporting up to 90W per port
      ●2x 1/10/25G/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      ●2x 10G/25G SFP ports (MACSEC)
      ●2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      ●Two field-replaceable, hot-swappable fan trays (included), no empty slot
      ●Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      ●Weight: 5.48 Kg (12.08 lbs)

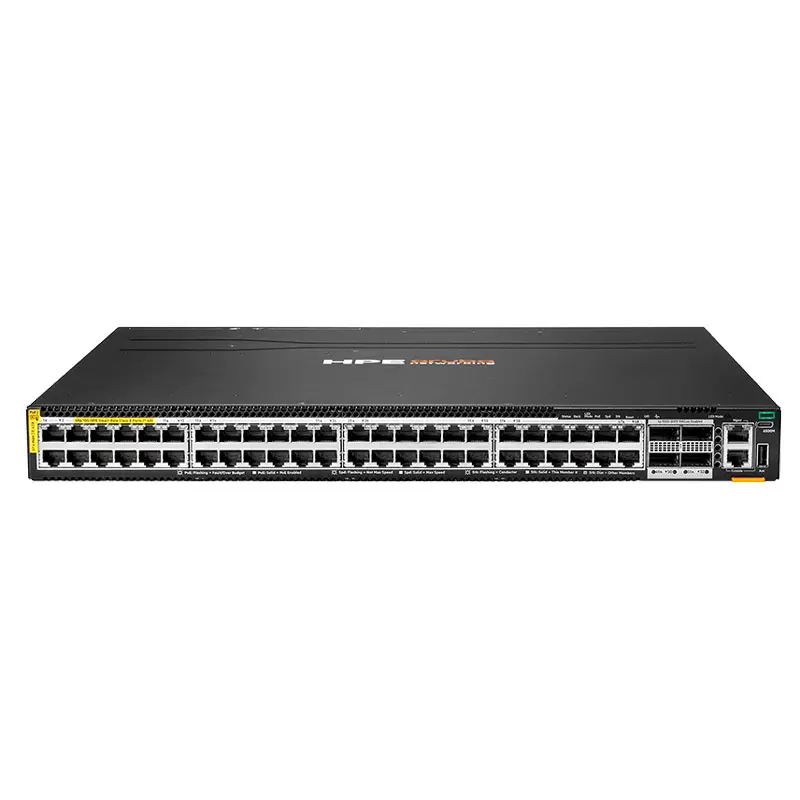

      HPE Aruba Networking 6300M 48p SR10 PTP/AVB Class8 PoE 4p 100G MACsec Switch (S0E91A)
      ●48x ports SmartRate 1G/2.5G/5G/10G BaseT Class 8 PoE ports supporting up to 90W per port
      ●4x 10G/25G/40G/100G QSFP/QSFP28 ports (MACsec)(requires QSFP28-SFP56 DAC cable to stack with other CX 6300 switches)
      ●2 field-replaceable, hot-swappable power supply slots 1 minimum power supply required (ordered separately)
      ●Three field-replacable, hot-swappable fan trays (included), no empty slots
      ●Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 47.2 cm (1.73" x 17.4" x 18.6")
      ●TAA Model SKU: S0X44A

      CX 6300L Layer 2 Switches

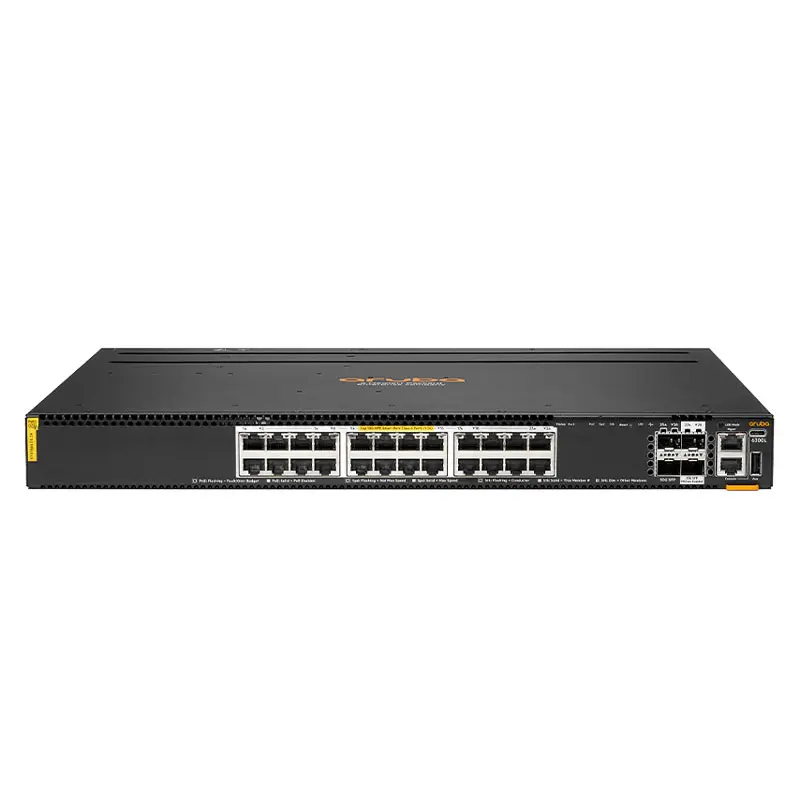

      HPE Aruba Networking 6300L 24p Smart Rate 1G/2.5G/5G/10G Class6 PoE 2p 50G and 2p 25G L2 Switch (S3L75A)
      ●24x ports SmartRate 100M/1G/2.5G/5G/10G BaseT Class 6 PoE ports supporting up to 60W per port
      ●2x 10G/25G/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      ●2x 10G/25G SFP ports (MACSEC)
      ●2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      ●Two field-replaceable, hot-swappable fan trays (included), no empty slot
      ●Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      ●Weight: 5.26 Kg (11.60 lbs)

      HPE Aruba Networking 6300L 48p Smart Rate 1G/2.5G/5G Class8 PoE 2p 50G and 2p 25G L2 Switch (S3L76A)
      ●48x ports SmartRate 100M/1G/2.5G/5G BaseT Class 8 PoE ports supporting up to 90W per port
      ●2x 1/10/25G/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      ●2x 10G/25G SFP ports (MACSEC)
      ●2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      ●Two field-replaceable, hot-swappable fan trays (included), no empty slot
      ●Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      ●Weight: 5.48 Kg (12.08 lbs)

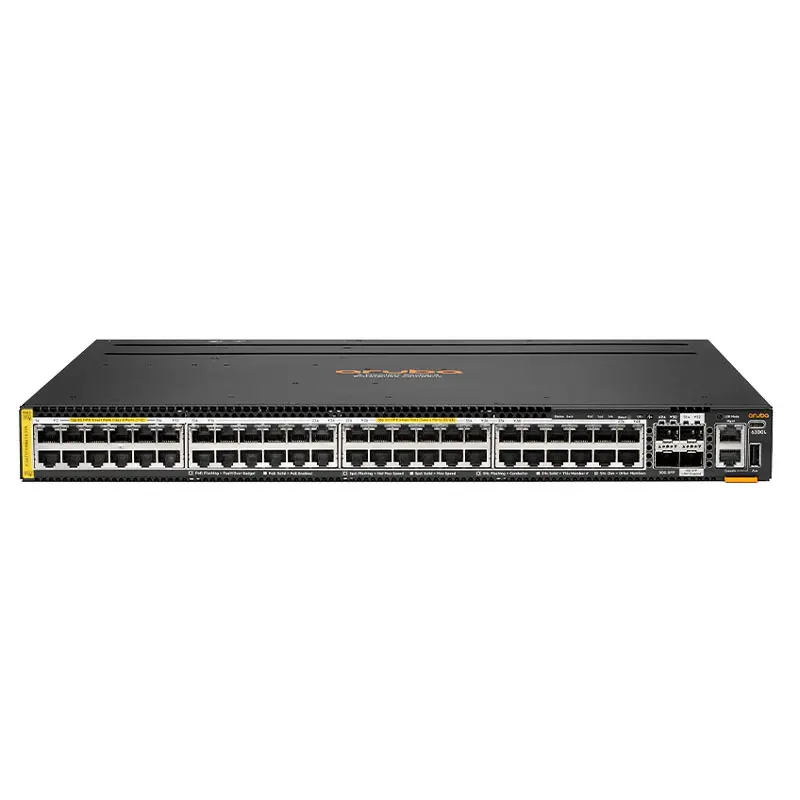

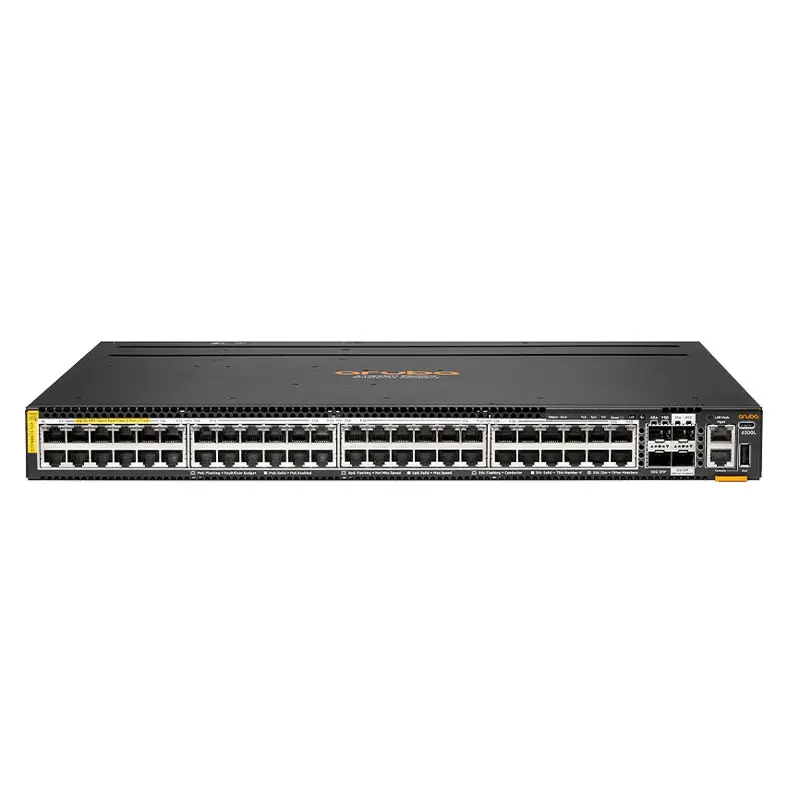

      HPE Aruba Networking 6300L 48p Smart Rate 1G/2.5G/5G Class8/6 PoE 2p 50G and 2p 10G LRM L2 Switch (S3L77A)
      ●48x ports SmartRate 100M/1G/2.5G/5G BaseT Class 8 PoE ports supporting up to 90W per port (on port 1-12), and Class 6 POE ports supporting up to 60W per port (on ports 13-48)
      ●2x 10G/25G/50G SFP ports (50G capability for use with 50GbE DACs for interconnect and VSF stacking)
      ●2x 1/10G SFP ports (LRM + MACSEC)
      ●2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      ●Two field-replaceable, hot-swappable fan trays (included), no empty slot
      ●Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73" x 17.4" x 15.2")
      ●Weight: 5.47 Kg (12.06 lbs)

      Management ports

      ●1x RJ45 Console port
      ●1x USB-C Console Port
      ●1x OOBM port
      ●1x USB Type A Host port
      ●A Bluetooth adapter is orderable for use with the Aruba CX Mobile App

      POE power

      ●Up to 2880W of Class 8: R8S90A, S3L76A
      ●Up to 2880W of Class 6 and Class 8: R8S91A, S3L77A
      ●Up to 2880W of Class 6: JL659A, R8S89A, S3L75A
      ●Up to 2640W of Class 8: S0E91A
      ●Up to 1440W of Class 6: JL660A
      ●Up to 1440W of Class 4: JL661A
      ●Up to 720W of Class 4: JL662A
      ●720W of Class 4: JL665A
      ●370W of Class 4: JL666A

      Mounting

      Mounts in an EIA standard 19 in. telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.

      Power supplies and fan tray

      ●HPE Aruba Networking X371 12VDC 250W 100-240VAC Power Supply (JL085A)
      ●HPE Aruba Networking X371 12VDC 250W 100-240VAC Power-to-Port Power Supply (JL760A)
      ●HPE Aruba Networking X372 54VDC 680W 100-240VAC Power Supply (JL086A)
      ●HPE Aruba Networking X372 54VDC 1050W 110-240VAC Power Supply (JL087A)
      ●HPE Aruba Networking X372 54VDC 1600W 110-240VAC Power Supply (JL670A)
      ●HPE Aruba Networking 6300M 250W 36-72VDC PSU (JL757A)
      ●HPE Aruba Networking 6300M 1050W 36-72VDC (JL758A)
      ●HPE Aruba Networking 6300M Fan Tray (JL669A)
      ●HPE Aruba Networking 6300M Power-to-Port Fan Tray (JL761A)

      Leave Your Message
