    HPE Aruba Networking CX 6200 Switch Series

    This cloud-manageable stackable access switch series is ideal for enterprise branch offices and campus networks, as well as SMBs.

      Contact us
      product details

      Performance

      ●System Switching Capacity: 272 Gbps
      ●System Throughput Capacity: Up to 202 Mpps
      ●Stack Size: 8 member
      ●Max. Stacking Distance: Up to 10 kms with long range transceivers

      Models

      CX 6200F 1G Switches

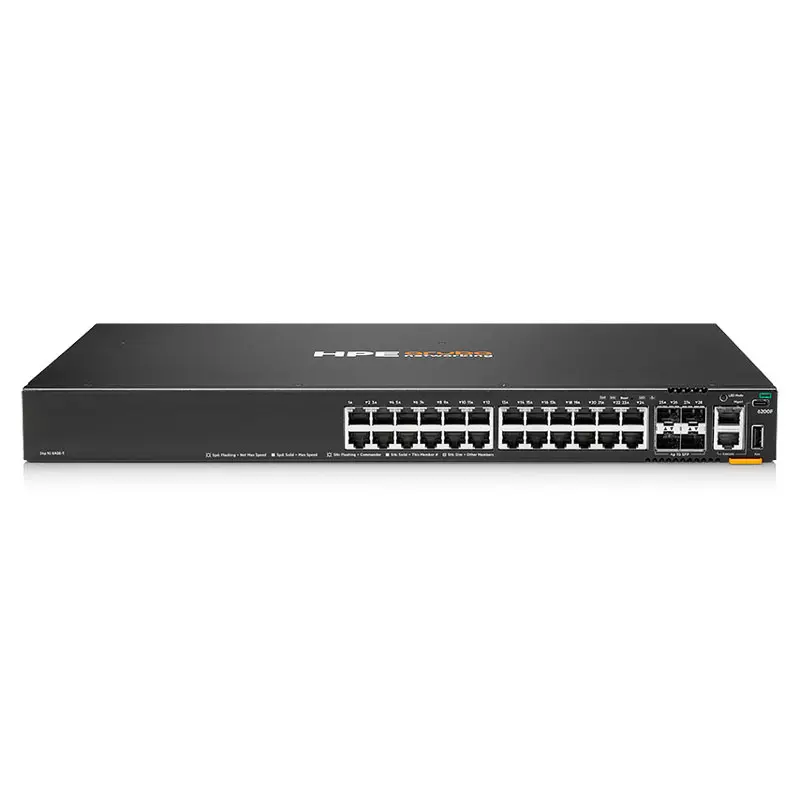

      HPE Aruba Networking 6200F 24G 4SFP Switch (S0M81A)
      ●24x ports 10/100/1000BaseT ports
      ●4x 100M/1G SFP ports
      ●Internal (fixed) power supply, fixed fans
      ●Dimensions: (H) 4.37 cm x (W) 44.25 cm x (D) 28.45 cm (1.72" x 17.42" x 11.2")
      ●Weight: 3.77 kg (8.32 lbs)
      ●TAA Model SKU: S0G13A

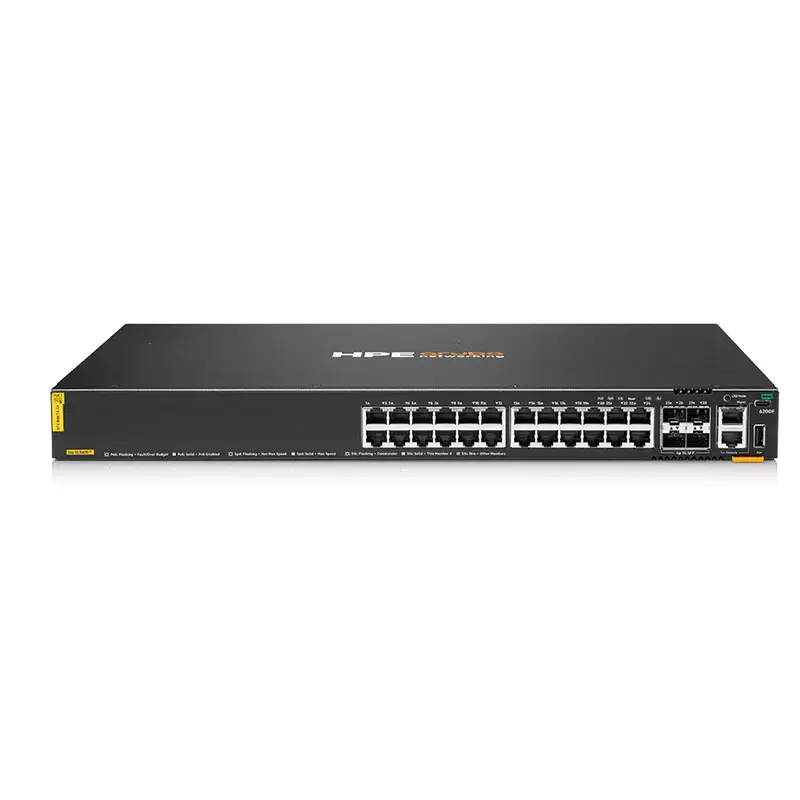

      HPE Aruba Networking 6200F 24G Class4 PoE 4SFP 370W Switch (S0M82A)
      ●24x ports 10/100/1000BaseT ports
      ●4x 100M/1G SFP ports
      ●Internal (fixed) power supply, fixed fans
      ●Up to 370W of Class 4 PoE
      ●Dimensions: (H) 4.37 cm x (W) 44.25 cm x (D) 30.43 cm (1.72" x 17.42" x 11.98")
      ●Weight: 4.39 kg (9.68 lbs)
      ●TAA Model SKU: S0G14A

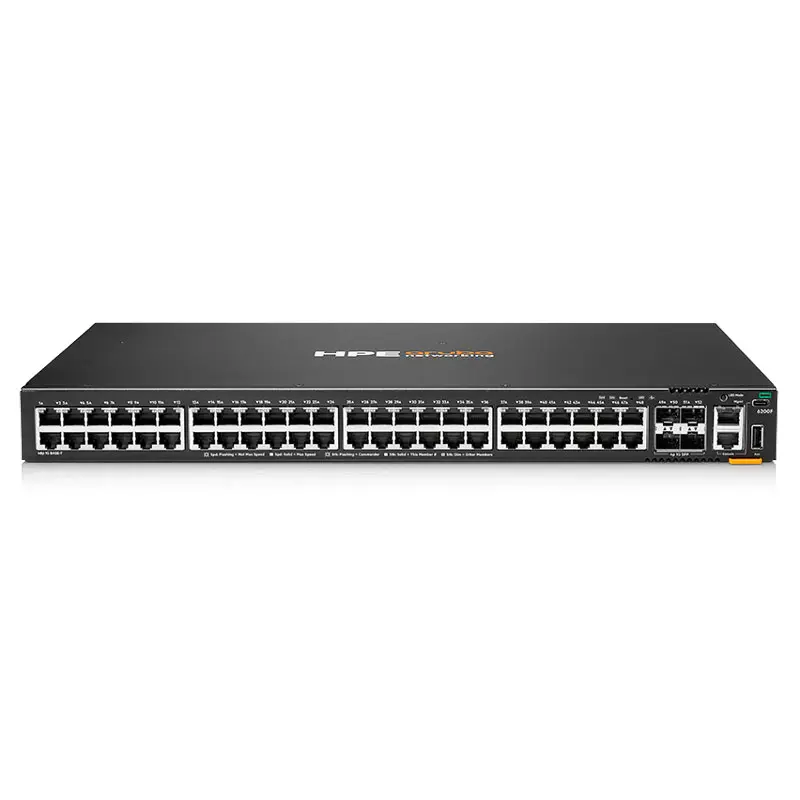

      HPE Aruba Networking 6200F 48G 4SFP Switch (S0M83A)
      ●48x ports 10/100/1000BaseT ports
      ●4x 100M/1G SFP ports
      ●Internal (fixed) power supply, fixed fans
      ●Dimensions: (H) 4.37 cm x (W) 44.25 cm x (D) 28.45 cm (1.72" x 17.42" x 11.2")
      ●Weight: 3.90 kg (8.59 lbs)
      ●TAA Model SKU: S0G15A

      HPE Aruba Networking 6200F 48G Class4 PoE 4SFP 370W Switch (S0M84A)
      ●48x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
      ●4x 100M/1G SFP ports
      ●Internal fixed power supply, fixed fans
      ●Up to 370W of Class 4 PoE
      ●Dimensions: (H) 4.37 cm x (W) 44.25 cm x (D) 30.43 cm (1.72" x 17.42" x 11.98")
      ●Weight: 4.87 kg (10.74 lbs)
      ●TAA Model SKU: S0G16A

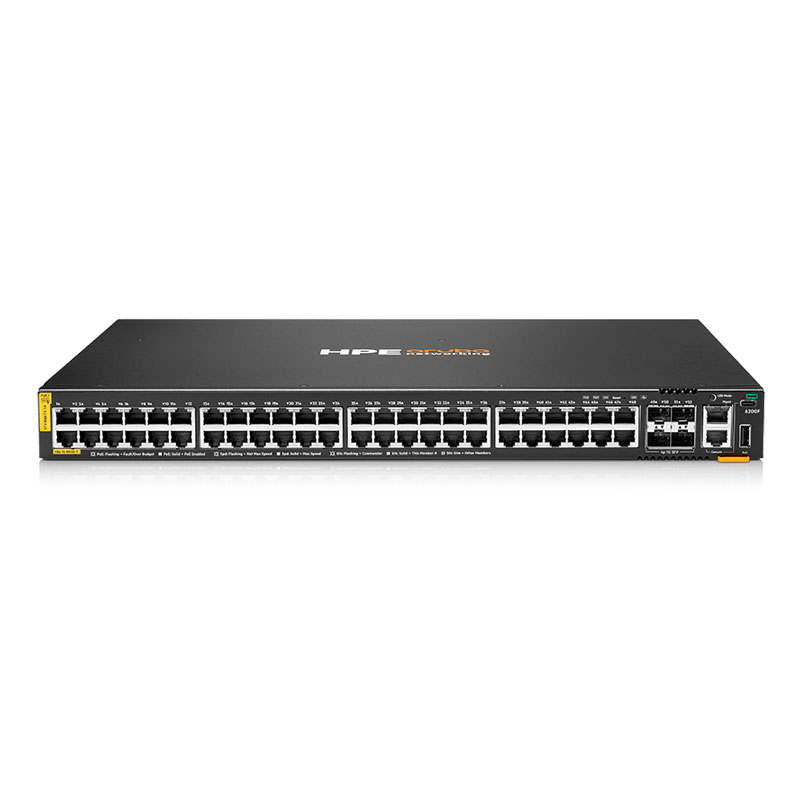

      HPE Aruba Networking 6200F 48G Class4 PoE 4SFP 740W Switch (S0M85A)
      ●48x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
      ●4x 100M/1G SFP ports
      ●Internal fixed power supply, fixed fans
      ●Up to 740W of Class 4 PoE
      ●Dimensions: (H) 4.37 cm x (W) 44.25 cm x (D) 32.66 cm (1.72" x 17.42" x 12.86")
      ●Weight: 5.13 kg (11.32 lbs)
      ●TAA Model SKU: S0G17A

      CX 6200F 10G Switches

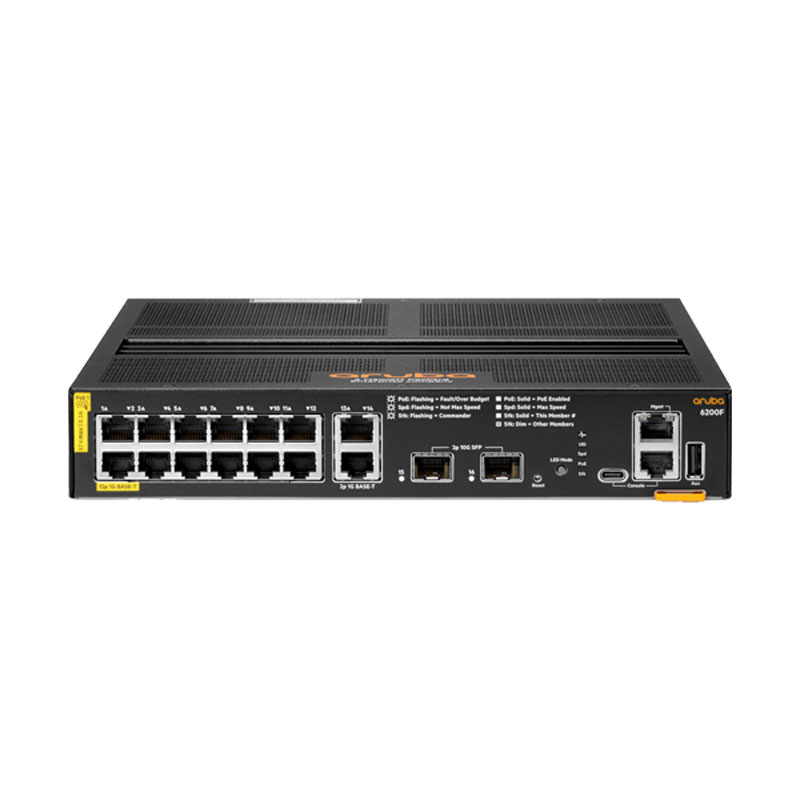

      HPE Aruba Networking 6200F 12G Class4 PoE 2G/2SFP+ 139W Switch (R8Q72A)
      ●12x ports 10/100/1000BASE-T
      ●2x 1G/10G SFP ports, 2x 1GbE ports
      ●Up to 139W of Class 4 PoE
      ●Internal (fixed) power supply
      ●Dimensions: (W x D x H): 25.4 cm (10.0") x 30.5 cm (12.0") x 4.39 cm (1.73")
      ●Weight: 3.24 kg (7.14 lbs)
      ●TAA Model SKU: R8V13A

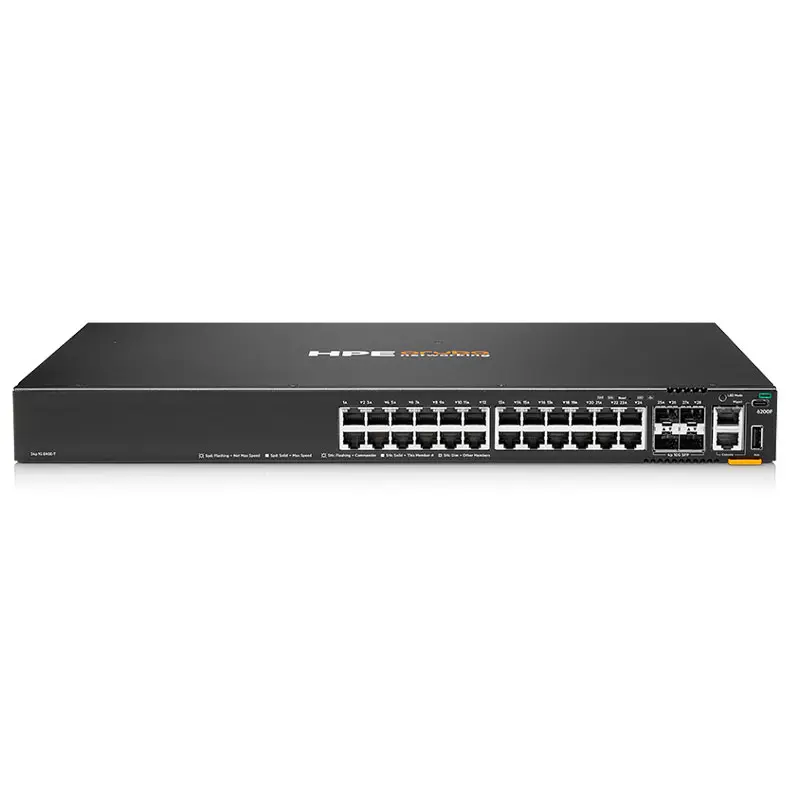

      HPE Aruba Networking 6200F 24G 4SFP+ Switch (JL724B)
      ●24x ports 10/100/1000BaseT ports
      ●4x 1/10G SFP+ ports
      ●Internal (fixed) power supply (200W - 80plus Silver), fixed fans
      ●Dimensions: (H) 4.37 cm x (W) 44.25 cm x (D) 28.45 cm (1.72" x 17.4" x 11.2")
      ●Weight: 3.77 kg (8.31 lbs)
      ●TAA Model SKU: S0M86A

      HPE Aruba Networking 6200F 24G Class4 PoE 4SFP+ 370W Switch (JL725B)
      ●24x ports 10/100/1000BaseT ports
      ●4x 1/10G SFP+ ports
      ●Internal (fixed) power supply (500W), fixed fans
      ●Up to 370W of Class 4 PoE
      ●Dimensions: (H) 4.37 cm x (W) 44.25 cm x (D) 30.43 cm (1.72" x 17.4" x 11.9")
      ●Weight: 4.39 kg (9.67 lbs)
      ●TAA Model SKU: S0M87A

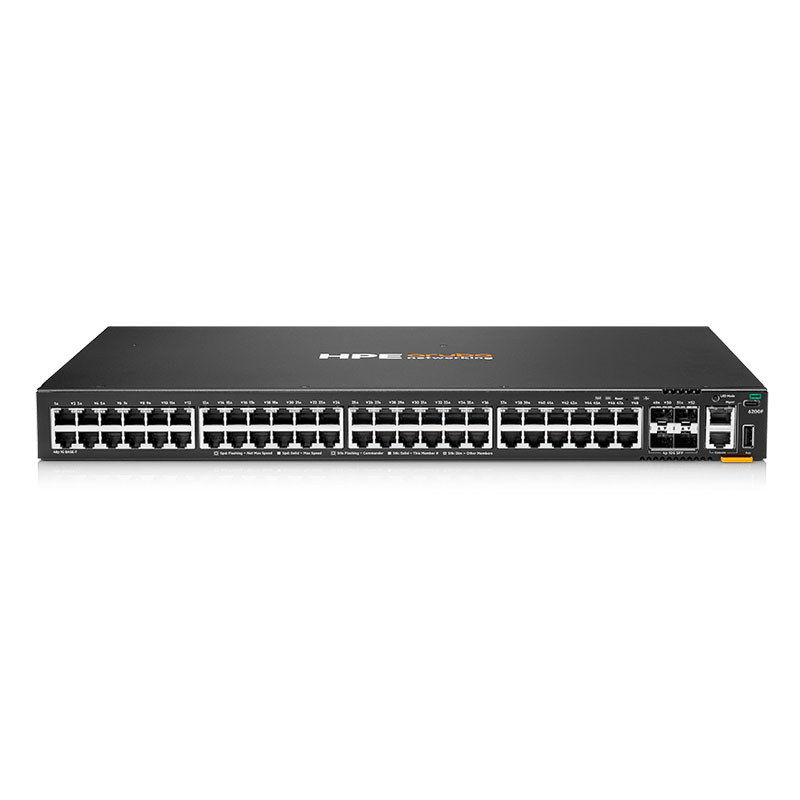

      HPE Aruba Networking 6200F 48G 4SFP+ Switch (JL726B)
      ●48x ports 10/100/1000BaseT ports
      ●4x 1/10G SFP+ ports
      ●Internal (fixed) power supply (200W - 80plus Silver), fixed fans
      ●Dimensions: (H) 4.37 cm x (W) 44.25 cm x (D) 28.45 cm (1.72" x 17.4" x 11.2")
      ●Weight: 3.90 kg (8.59 lbs)
      ●TAA Model SKU: S0M88A

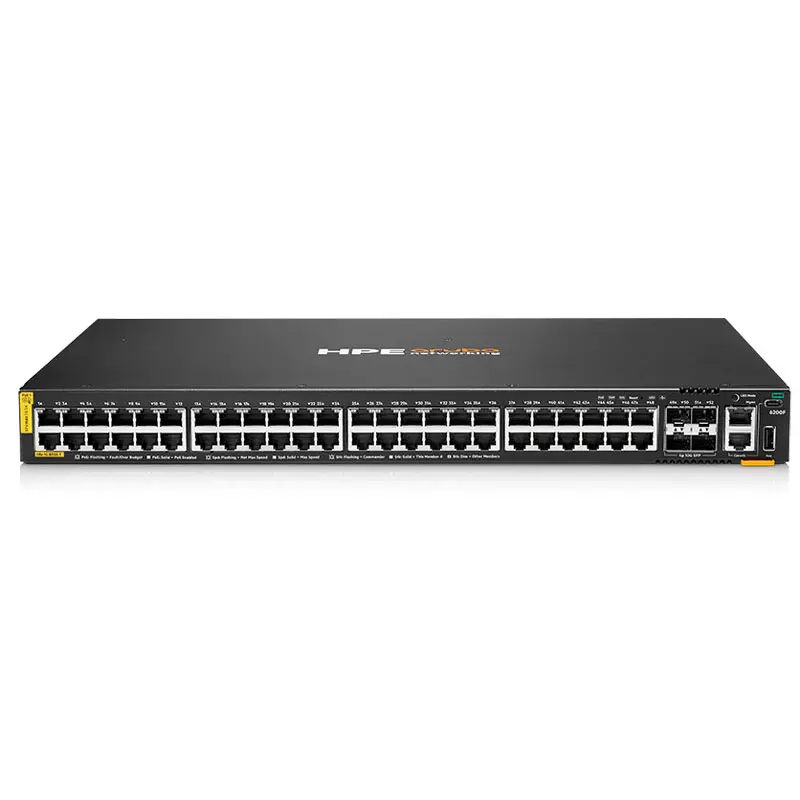

      HPE Aruba Networking 6200F 48G Class4 PoE 4SFP+ 370W Switch (JL727B)
      ●48x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
      ●4x 1/10G SFP+ ports
      ●Internal (fixed) power supply (500W), fixed fans
      ●Up to 370W of Class 4 PoE
      ●Dimensions: (H) 4.37 cm x (W) 44.25 cm x (D) 30.43 cm (1.72" x 17.4" x 11.9")
      ●Weight: 4.87 kg (10.73 lbs)
      ●TAA Model SKU: S0M89A

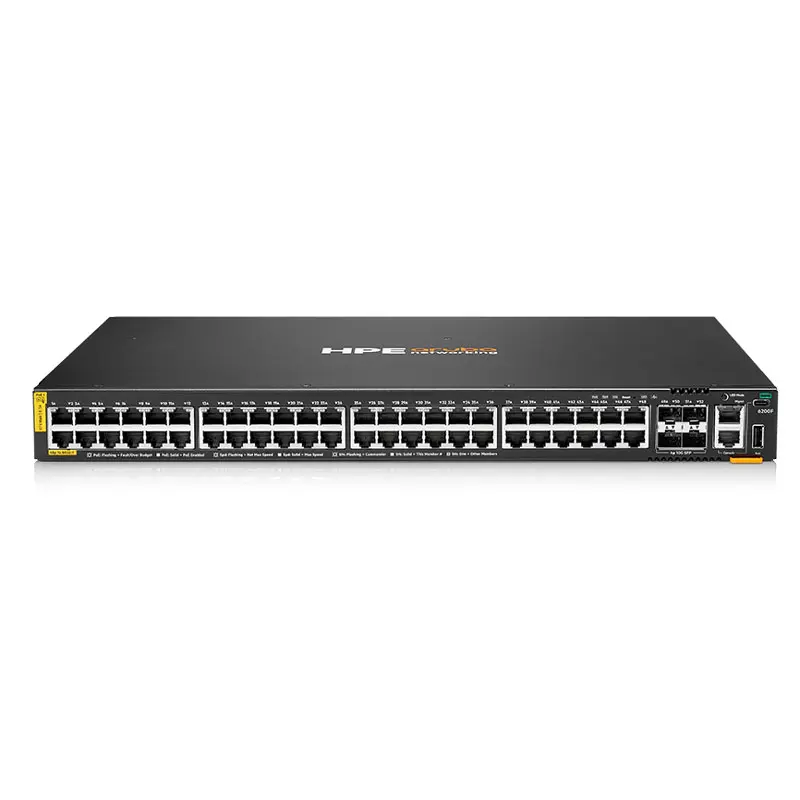

      HPE Aruba Networking 6200F 48G Class4 PoE 4SFP+ 740W Switch (JL728B)
      ●48x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
      ●4x 1/10G SFP+ ports
      ●Internal (fixed) power supply (950W - 80plus Gold), fixed fans
      ●Up to 740W of Class 4 PoE
      ●Dimensions: (H) 4.37 cm x (W) 44.37 cm x (D) 32.66 cm (1.72" x 17.4" x 12.8")
      ●Weight: 5.13 kg (11.30 lbs)
      ●TAA Model SKU: S0M90A

      CX 6200M 10G Switches

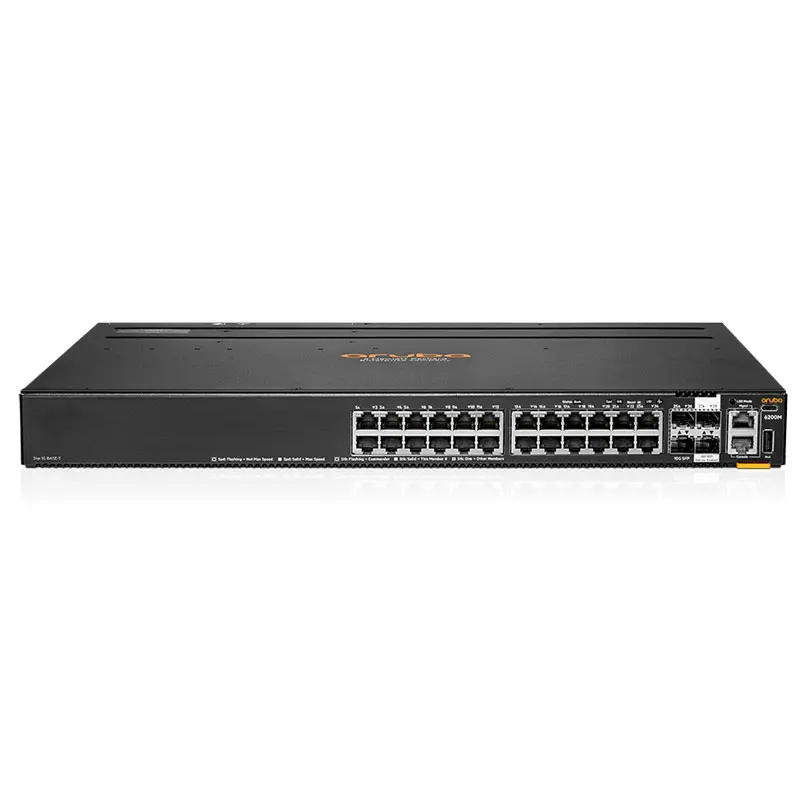

      HPE Aruba Networking 6200M 24G 4SFP+ Switch (R8Q67A)
      ●24x ports 10/100/1000BASE-T Ports
      ●4x 1G/10G SFP ports (2x LRM; 2x LRM/MACSec 256)
      ●Two field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      ●Two field-replaceable, hot-swappable fan trays (1 included)
      ●Dimensions: (W x D x H): 44.2 cm (17.4") x 38.5 cm (15.2") x 4.39 cm (1.73")
      ●Weight: 5.59 kg (12.32 lbs)
      ●TAA Model SKU: R8V08A

      HPE Aruba Networking 6200M 24G Class4 PoE 4SFP+ Switch (R8Q68A)
      ●24x ports 10/100/1000BASE-T
      ●4x 1G/10G SFP ports (2x LRM; 2x LRM/MACSec 256)
      ●Up to 740W of Class 4 PoE
      ●Two field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      ●Two field-replaceable, hot-swappable fan trays (1 included)
      ●Dimensions: (W x D x H): 44.2 cm (17.4") x 38.5 cm (15.2") x 4.39 cm (1.73")
      ●Weight: 5.83 kg (12.85 lbs)
      ●TAA Model SKU: R8V09A

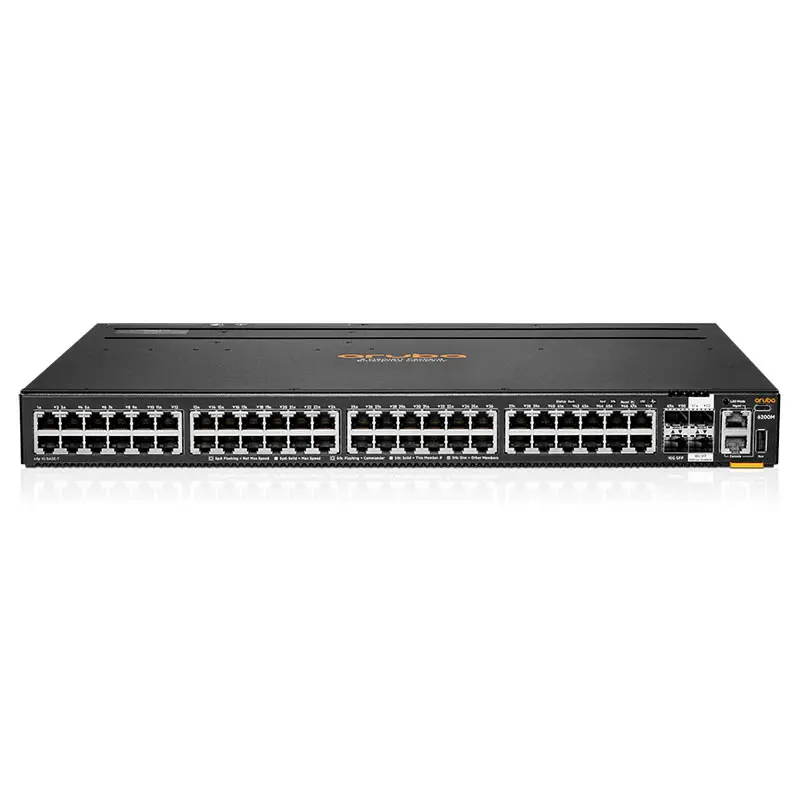

      HPE Aruba Networking 6200M 48G 4SFP+ Switch (R8Q69A)
      ●48x ports 10/100/1000BASE-T Ports
      ●4x 1G/10G SFP ports (2x LRM; 2x LRM/MACSec 256)
      ●Two field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      ●Two field-replaceable, hot-swappable fan trays (1 included)
      ●Dimensions: (W x D x H): 44.2 cm (17.4") x 38.5 cm (15.2") x 4.39 cm (1.73")
      ●Weight: 5.73 kg (12.63 lbs)
      ●TAA Model SKU: R8V10A

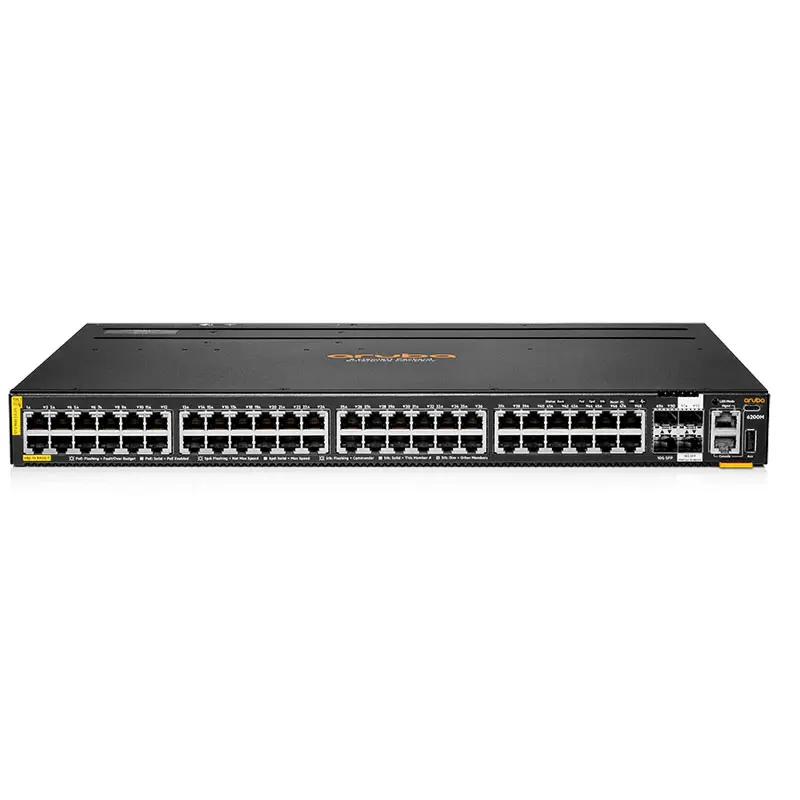

      HPE Aruba Networking 6200M 48G Class4 PoE 4SFP+ Switch (R8Q70A)
      ●48x ports 10/100/1000BASE-T
      ●4x 1G/10G SFP ports (2x LRM; 2x LRM/MACSec 256)
      ●Up to 1440W of Class 4 PoE
      ●Two field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      ●Two field-replaceable, hot-swappable fan trays (1 included)
      ●Dimensions: (W x D x H): 44.2 cm (17.4") x 38.5 cm (15.2") x 4.39 cm (1.73")
      ●Weight: 6.15 kg (13.56 lbs)
      ●TAA Model SKU: R8V11A

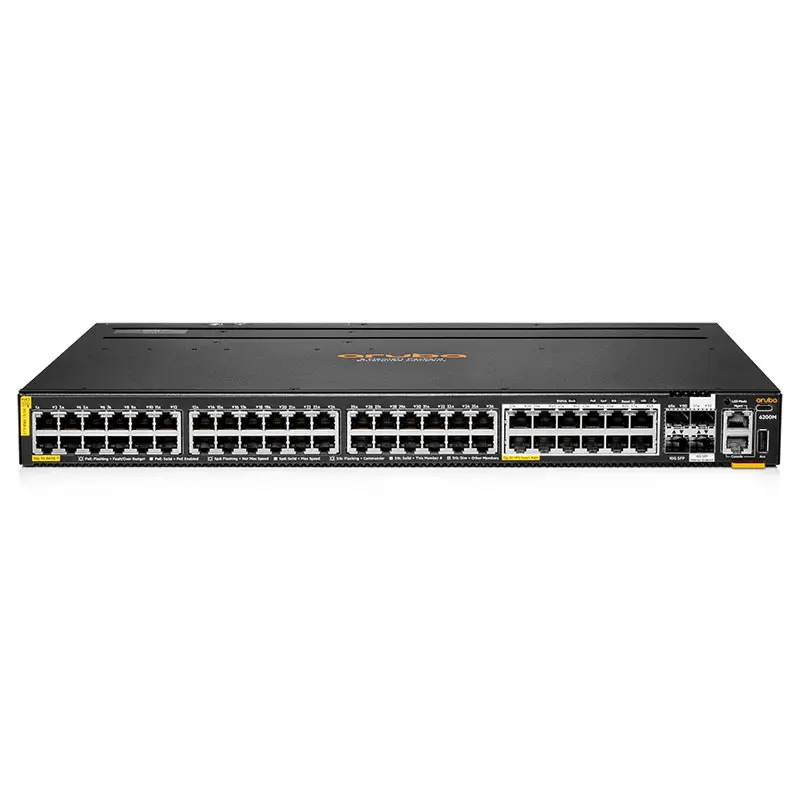

      HPE Aruba Networking 6200M 36G 12SR5 Class6 PoE 4SFP+ Switch (R8Q71A)
      ●36x ports 10/100/1000BASE-T
      ●12x ports SmartRate 1G/2.5G/5G BaseT
      ●4x 1G/10G SFP ports (2x LRM; 2x LRM/MACSec 256)
      ●Up to 1440W of Class 6 PoE
      ●Two field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
      ●Two field-replaceable, hot-swappable fan trays (1 included)
      ●Dimensions: (W x D x H): 44.2 cm (17.4") x 38.5 cm (15.2") x 4.39 cm (1.73")
      ●Weight: 6.31 kg (13.91 lbs)
      ●TAA Model SKU: R8V12A

      Management ports

      ●1x RJ-45 console port
      ●1x USB-C Console Port
      ●1x OOBM port
      ●1x USB Type-A Host port
      ●A Bluetooth adapter is orderable for use with the Aruba CX Mobile App

      POE power

      ●Up to 1440W of Class 4 and/or Class 6: R8Q70A, R8V11A, R8Q71A, R8V12A
      ●740W of Class 4: JL728B, R8Q68A, R8V09A, S0M85A, S0M90A
      ●370W of Class 4: JL725B, JL727B, S0M82A, S0M87A, S0M84A, S0M89A
      ●139W of Class 4: R8Q72A, R8V13A

      Mounting

      Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.
