    HPE Aruba Networking CX 6100 Switch Series

    Entry-level access switches ideal for branch offices, mid-market enterprises, and SMB networks looking for reliable and convenient access.

      Contact us
      product details

      Performance

      ●System Switching Capacity: Up to 176 Gbps
      ●System Throughput Capacity: Up to 98.6 Mpps

      Models

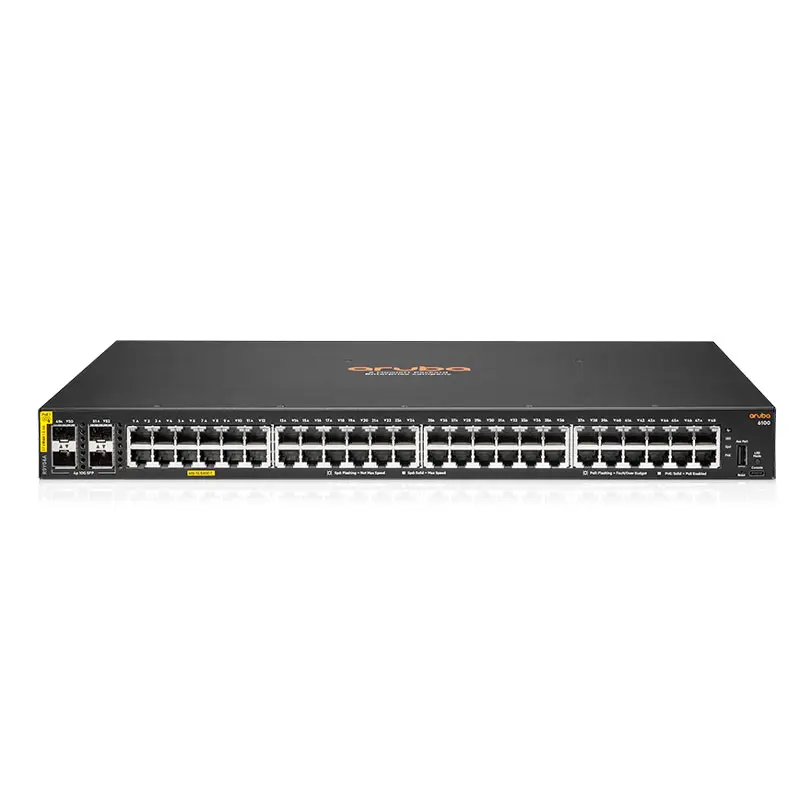

      HPE Aruba Networking 6100 48G Class4 PoE 4SFP+ 740W Switch (R9Y04A)
      ●48x ports 10/100/1000Base-T ports
      ●4x 1G/10G SFP+ ports
      ●Internal (fixed) power supply, fixed fans
      ●Up to 740W of Class 4 PoE
      ●Dimensions: (H) 4.39 cm x (W) 44.25 cm x (D) 32.42 cm (1.73" x 17.43" x 12.77")
      ●Weight: 4.7 kg (10.36 lbs)

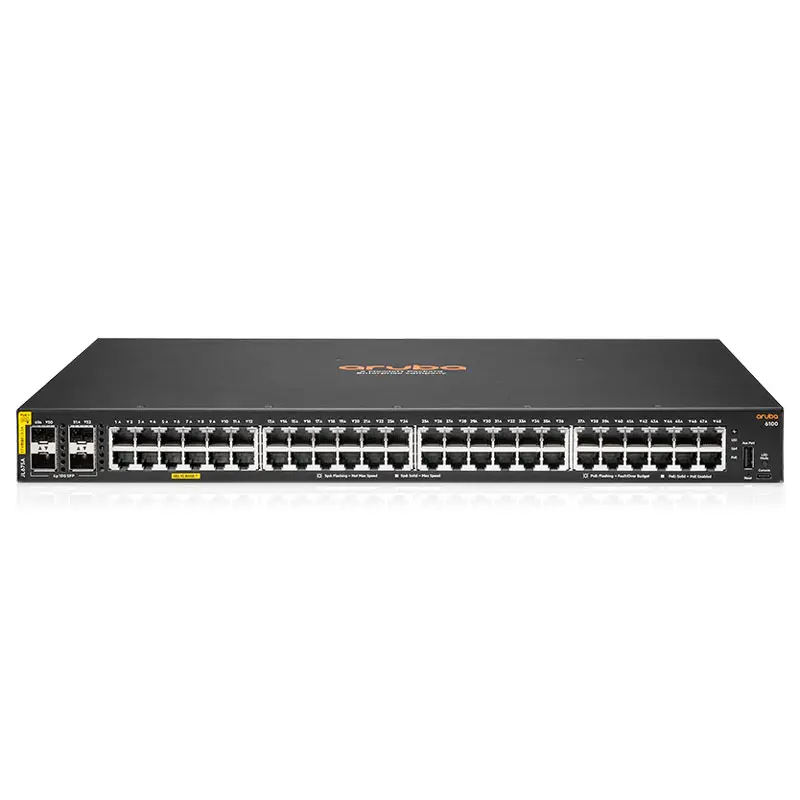

      HPE Aruba Networking 6100 48G Class4 PoE 4SFP+ 370W Switch (JL675A)
      ●48x ports 10/100/1000Base-T ports
      ●4x 1/10G SFP ports
      ●Internal (fixed) power supply, fixed fans
      ●Up to 370W of Class 4 PoE
      ●Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 30.48 cm (1.73" x 17.4" x 12.0")
      ●Weight: 5.02 kg (11.07 lbs)

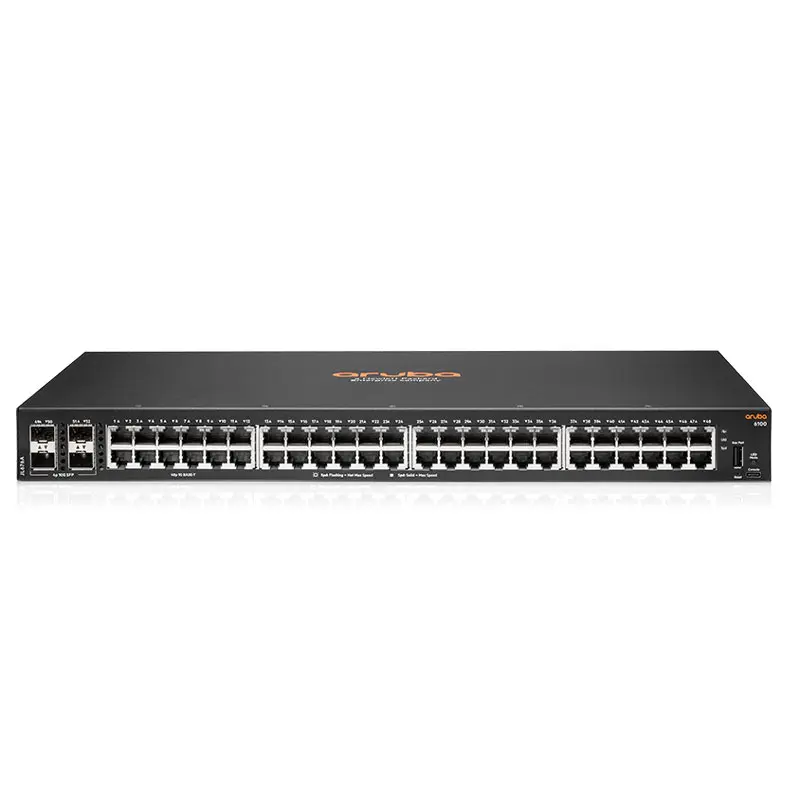

      HPE Aruba Networking 6100 48G 4SFP+ Switch (JL676A)
      ●48x ports 10/100/1000Base-T ports
      ●4x 1/10G SFP ports
      ●Internal (fixed) power supply, fixed fans
      ●Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 24.74 cm (1.73" x 4" x 9.74")
      ●Weight: 3.42 kg (7.54 lbs)

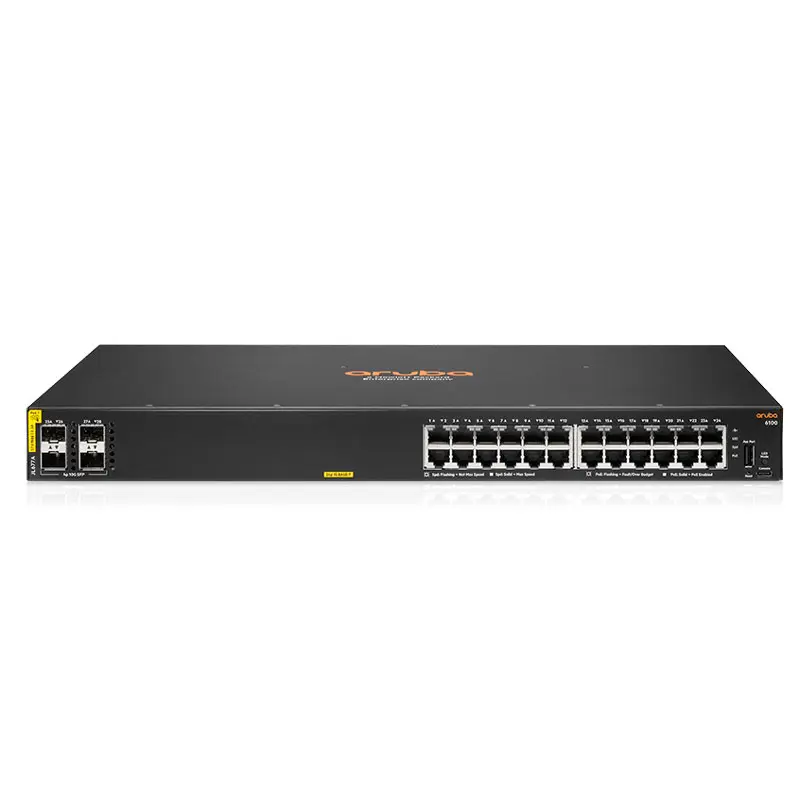

      HPE Aruba Networking 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A)
      ●24x ports 10/100/1000Base-T ports
      ●4x 1/10G SFP ports
      ●Internal (fixed) power supply, fixed fans
      ●Up to 370W of Class 4 PoE
      ●Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 26.82 cm (1.73" x 4" x 10.56")
      ●Weight: 4.19kg (9.24 lbs)

      HPE Aruba Networking 6100 24G 4SFP+ Switch (JL678A)
      ●24x ports 10/100/1000Base-T ports
      ●4x 1/10G SFP ports
      ●Internal (fixed) power supply, fixed fans
      ●Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 20.12 cm (1.73" x 4" x 7.92")
      ●Weight: 2.62 kg (5.78 lbs)

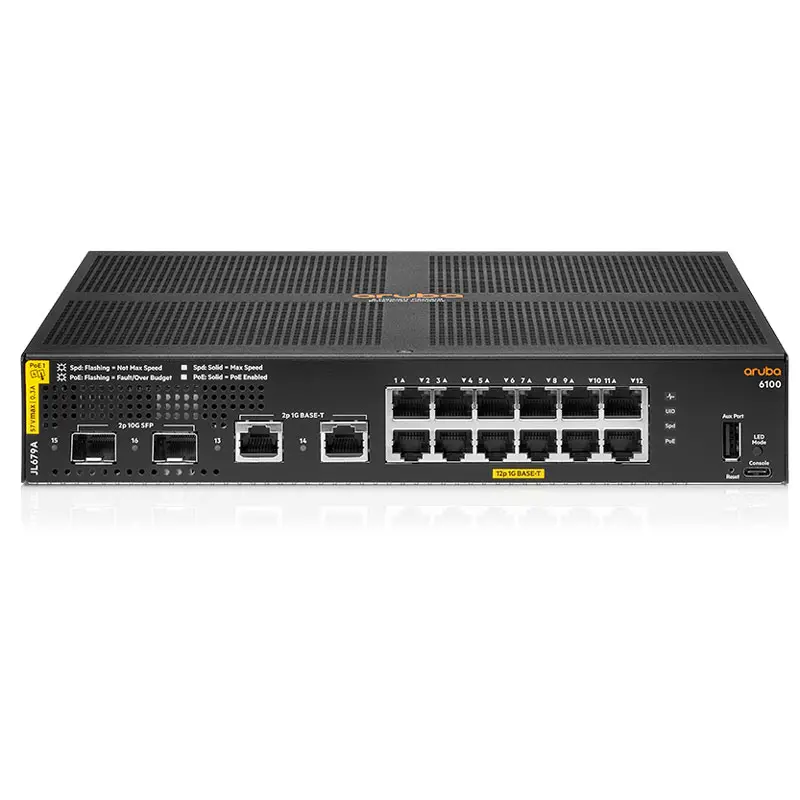

      HPE Aruba Networking 6100 12G Class4 PoE 2G/2SFP+ 139W Switch (JL679A)
      ●12x ports 10/100/1000Base-T ports
      ●2x 1/10G SFP ports
      ●2x 1G ports
      ●Internal (fixed) power supply, fanless
      ●Up to 139W of Class 4 PoE
      ●Dimensions: (H) 4.39 cm x (W) 25.4 cm x (D) 25.5 cm (1.73" x 0" x 10.04")
      ●Weight: 2.78 kg (6.13 lbs)

      Management ports

      ●1x USB-C Console Port
      ●1x USB Type-A Host port

      Management ports

      ●740W of Class 4: R9Y04A
      ●370W of Class 4: JL675A, JL677A
      ●139W of Class 4: JL679A

      Management ports

      Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.
