Access switches
HPE Aruba Networking CX 4100i Switch Series
Performance
●System Switching Capacity: Up to 128 Gbps
●System Throughput Capacity: Up to 95 Mpps
Models

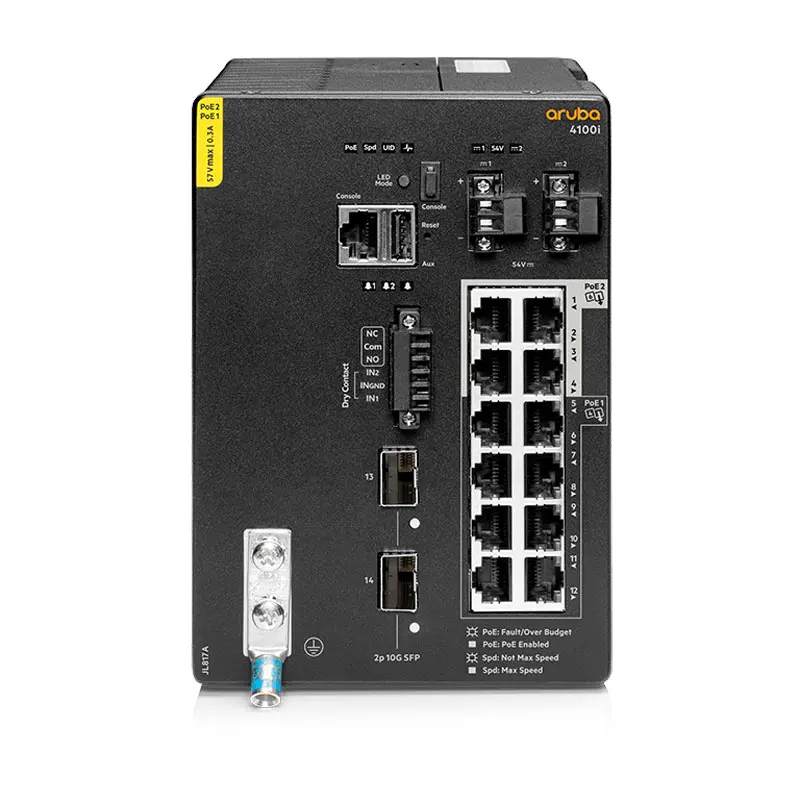

Aruba CX 4100i 12-port 1GbE (8-port Class 4 POE and 4-port Class 6 POE) 2-port SFP+ DIN Mount Switch
●4x ports 100M/1G BaseT Class 6 PoE ports supporting up to 60W per port
●8x ports 100M/1G BaseT Class 4 PoE ports supporting up to 30W per port
●2x 1/10G SFP ports
●Field replaceable Industrial DIN Rail Power Supplies (JL819A, JL820A and JL821A)
●Fanless
●Up to 360W of PoE power, based on PSU and environmental temperature
●Dimensions: (H) 160 mm x (W) 113 mm x (D) 162.9 mm (173.5 mm w/DIN Rail Bracket)(6.3" x 4.4" x 6.4" (6.8" w/DIN Rail Bracket))
●Weight: 3.84 kg (8.46 lbs)
Aruba CX 4100i 24-port 1GbE (20-port Class 4 POE and 4-port Class 6 POE) 4-port SFP+ Switch
●4x ports 100M/1G BaseT Class 6 PoE ports supporting up to 60W per port
●20x ports 100M/1G BaseT Class 4 PoE ports supporting up to 30W per port
●4x 1/10G SFP ports
●Internal (fixed) power supply (300W)
●Fanless
●240W of PoE power (no de-rating)
●Dimensions: (H) 44 mm x (W) 444.5 mm x (D) 304 mm (1.73" x 17.5" x 12.0")
●Weight: 6.50 kg (14.33 lbs)
External power supplies (for 12 port DIN Rail model)
●Aruba CX 4000i POE 54VDC 240W 100-240VAC DIN Power Supply (JL819A) – AC PSU for up to 180W PoE
●Aruba CX 4000i POE 54VDC 480W 100-240VAC DIN Power Supply (JL820A) – AC PSU for up to 360W PoE
●Aruba CX 4000i POE 54VDC 240W 12-48VDC DIN Power Supply (JL821A) – DC PSU for up to 180W PoE
Industrial transceivers
●Aruba 1G I-Tmp SFP LC SX 500m MMF XCVR (JL780A)
●Aruba 1G I-Tmp SFP LC LX 10km SMF XCVR (JL781A)
●Aruba 10G I-Tmp SFP+ LC SR 300m MMF XCVR (JL782A)
●Aruba 10G I-Tmp SFP+ LC LR 10km SMF XCVR (JL783A)
* Required for -40°C to 70°C extended temperature range.
Management ports
●1x USB-C Console Port
●1x RJ Console
●1x USB Type-A Host port
●1x Alarm socket
Mounting
●DIN rail model supports DIN rail mounting with included bracket
●Optional accessory: DIN Rail bracket for EIA-standard 19" telco rack or equipment cabinet - Aruba DIN Rail 3RU 19inch Rack Mount Kit (JL822A), purchase separately
●Optional accessory: Aruba X414 1U Universal 4-post RM Kit (J9583B), purchase separately
PoE
●JL817A: Up to 360W PoE using external PSU (temperature and PSU dependent). 4 ports of Class 6, 8 ports of Class 4
●JL818A: 240W of PoE power (no de-rating). 4 ports of Class 6, 20 ports of Class 4.
