HPE Aruba Networking 750 Series Wi-Fi 7 Campus Access Points

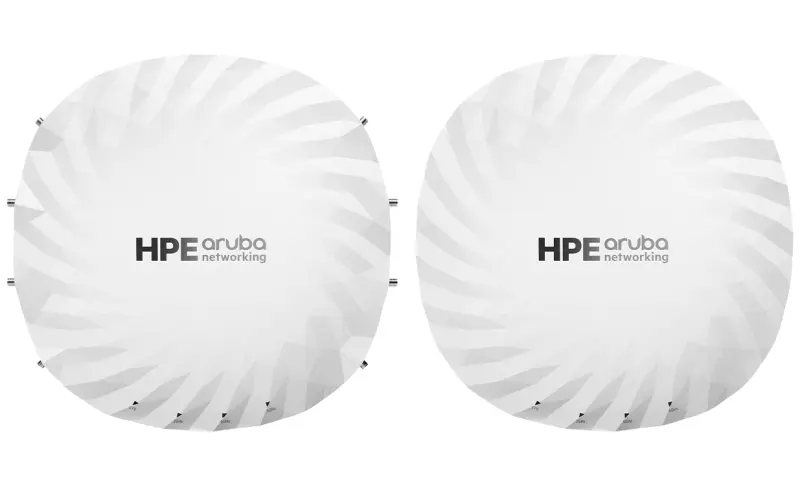

HPE Aruba Networking AP754: External antenna models

HPE Aruba Networking AP755: Internal antenna models

●AP type: Indoor, tri radio, 2.4 GHz, 5 GHz and 6 GHz (concurrent) 802.11be 4x4 MIMO

●2.4 GHz radio: Four spatial stream Single User (SU) MIMO for up to 1.4 Gbps wireless data rate with 4SS EHT40 802.11be client devices

●5 GHz radio: Four spatial stream Single User (SU) MIMO for up to 5.8 Gbps wireless data rate with 2SS EHT160 802.11be client devices

●6 GHz radio: Four spatial stream Single User (SU) MIMO for up to 11.5 Gbps wireless data rate with 2SS EHT320 802.11be client devices

●MU-MIMO (downlink, uplink) is supported on all radios

●Up to 512 associated client devices per radio, and up to 16 BSSIDs per radio

●Supported frequency bands (country-specific restrictions apply):

    ●2.400 to 2.4835 GHz ISM

    ●5.150 to 5.250 GHz U-NII-1

    ●5.250 to 5.350 GHz U-NII-2

    ●5.470 to 5.725 GHz U-NII-2E

    ●5.725 to 5.850 GHz U-NII-3/ISM

    ●5.850 to 5.895 GHz U-NII-4

    ●5.925 to 6.425 GHz U-NII-5

    ●6.425 to 6.525 GHz U-NII-62

    ●6.525 to 6.875 GHz U-NII-7

    ●6.875 to 7.125 GHz U-NII-8

●Available bands and channels: Dependent on configured regulatory domain (country)

●Dynamic frequency selection (DFS) optimizes the use of available RF spectrum in the 5 GHz band

    ●Including Zero-Wait DFS (ZWDFS) to accelerate channel changes

●Supported radio technologies:

    ●802.11b: Direct-sequence spread-spectrum (DSSS)

    ●802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)

    ●802.11ax/be: Orthogonal frequency-division multiple access (OFDMA) with up to 37 resource units

●Supported modulation types:

    ●802.11b: BPSK, QPSK, CCK

    ●802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM and 256-QAM (proprietary extension)

    ●802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM (proprietary extension)

    ●802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, and 1024-QAM

    ●802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, and 4096-QAM

●802.11n high throughput (HT) support: HT20/40

●802.11ac very high throughput (VHT) support: VHT20/40/80/160

●802.11ax high efficiency (HE) support: HE20/40/80/160

●802.11be extreme high throughput (EHT) support: EHT20/40/80/160/320

●Supported data rates (Mbps):

    ●802.11b: 1, 2, 5.5, 11

    ●802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54

    ●802.11n: 6.5 to 600 (MCS0 to MCS15, HT20 to HT40)

    ●802.11ac: 6.5 to 3,467 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160)

    ●802.11ax: 7.3 to 4,804 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160)

    ●802.11be: 7.3 to 11,530 (MCS0 to MCS13, NSS = 1 to 4, EHT20 to EHT320)

●802.11n/ac packet aggregation: A-MPDU, A-MSDU

●Transmit power: Configurable in increments of 0.5 dBm

●Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements)

    ●Per radio/band (2.4 GHz/5 GHz/6 GHz): +24 dBm (18 dBm per chain)

    ●Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain.

●Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks

●Ultra Tri-Band (UTB) enables ultimate flexibility in 5 GHz and 6 GHz channel selection without performance degradation

●Maximum ratio combining (MRC) for improved receiver performance

●Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance

●Space-time block coding (STBC) for increased range and improved reception

●Low-density parity check (LDPC) for high-efficiency error correction and increased throughput

●Transmit beam-forming (TxBF) for increased signal reliability and range

●802.11ax Target Wait Time (TWT) to support low-power client devices

●802.11mc/az Fine Timing Measurement (FTM) for precision distance ranging

●HPE Aruba Networking AP-754: Two sets of four (female) RP-SMA connectors for external antennas (A0 through A3 corresponding with radio chains 0 through 3 for the 2.4 GHz and 5 GHz radios, and B0 through B3 corresponding with radio chains 0 through 3 for the 6 GHz radio). Worst-case internal loss between radio interface and external antenna connectors: 1.1dB in 2.4 GHz, 1.8dB in 5 GHz, and 2.8dB in 6 GHz.

●HPE Aruba Networking AP-755: Integrated downtilt omni-directional antennas for 4x4 MIMO with peak antenna gain of 5.3dBi in 2.4 GHz, 6.0dBi in 5 GHz (5.8dBi in dual-5 GHz mode) and 6.0dBi in 6 GHz (5.9dBi in dual-6 GHz mode). Built-in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 to 40 degrees.

    ●Combining the patterns of each of the antennas of the MIMO radios, the peak gain of the combined, average pattern is 3.1dBi in 2.4 GHz, 3.6dBi in 5 GHz (3.7dBi in dual-5 GHz mode) and 3.6dBi in 6 GHz (3.6dBi in dual-6 GHz mode).

●E0, E1: Two Ethernet wired network ports (RJ-45)

    ●Auto-sensing link speed (100/1000/2500/5000/10000BASE-T) and MDI/MDX

    ●PoE-PD: 48Vdc (nominal) 802.3af/at/bt PoE (class 3 or higher)

    ●802.3az Energy Efficient Ethernet (EEE)

    ●Link aggregation (LACP) support between both network ports for redundancy and increased capacity

    ●MACsec support on E0 (802.1ae)

●DC power interface: 12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length

●U0, U1: Two USB 2.0 host interface (Type A connector)

    ●Capable of sourcing up to 2A/10W to one or two attached devices

●Flexible dual IOT radio options: BLE 5.4 (w/HADM), plus either BLE 5.4 or 802.15.4/Zigbee:

    ●BLE: BT5.4 with up to 1dBm transmit power (class 1) and -105dBm receive sensitivity (125 kbps)

    ●IEEE 802.15.4/Zigbee: up to 1dBm transmit power and -97dBm receive sensitivity (250 kbps)

    ●Integrated omnidirectional antenna with roughly 30 to 40 degrees downtilt and peak gain of 5.6dBi (AP-754) or 6.0dBi (AP-755)

●GNSS L1 (1575.42 MHz) and L5 (1176.45 MHz) receiver supporting GPS, Galileo, GLONASS, and BeiDou signal

    ●Receive sensitivity: -165dBm (tracking)

    ●Integrated omnidirectional antenna with roughly 30 to 40 degrees downtilt and peak gain of 3.0dBi (AP-754) or 4.1dBi (AP-755)

●Integrated barometric pressure sensor to determine (relative) deployment altitude of the AP

●Advanced IoT Coexistence (AIC) allows concurrent operation of multiple radios in the 2.4 GHz band

●Built-in Trusted Platform Module (TPM) for enhanced security and anti-counterfeiting

●Visual indicators (four multi-color LEDs): for System (1x) and Radio (3x) status

●Reset button: factory reset, LED mode control (normal/off)

●Serial console interface (proprietary, micro-B USB physical jack)

●Kensington security slot

●Automatic thermal shutdown and recovery function

●The AP supports direct DC power and Power over Ethernet (PoE) on port E0 and/or E1

●When both DC and PoE power sources are available, DC power takes priority over PoE

●Power sources are sold separately; see the HPE Aruba Networking 750 Series Ordering Guide for details

●When powered by DC or 802.3bt (class 6) PoE, the AP will operate without restrictions

●Operating the AP with a single 802.3af (class 3 or lower) POE source is not supported, regardless of IPM status (except for AP staging)

●With IPM enabled, the AP will start up in unrestricted mode but may dynamically apply restrictions depending on the available power budget and actual consumption. The feature restrictions and order in which these get applied are configurable

●Maximum (worst case) power consumption (without/with USB devices attached):

     ●DC powered: 35W/46W.

     ●PoE powered: 40W/51W.

●This assumes that up to 10W is supplied to the attached USB device(s).

●Maximum (worst-case) power consumption in idle mode: 14W/25W (DC) or 12W/23W (PoE).

●Maximum (worst-case) power consumption in deep-sleep mode: 2.4W (DC) or 3.5W (PoE).
