Access switches
HPE Aruba Networking 2930M Switch Series
I/O ports and slots

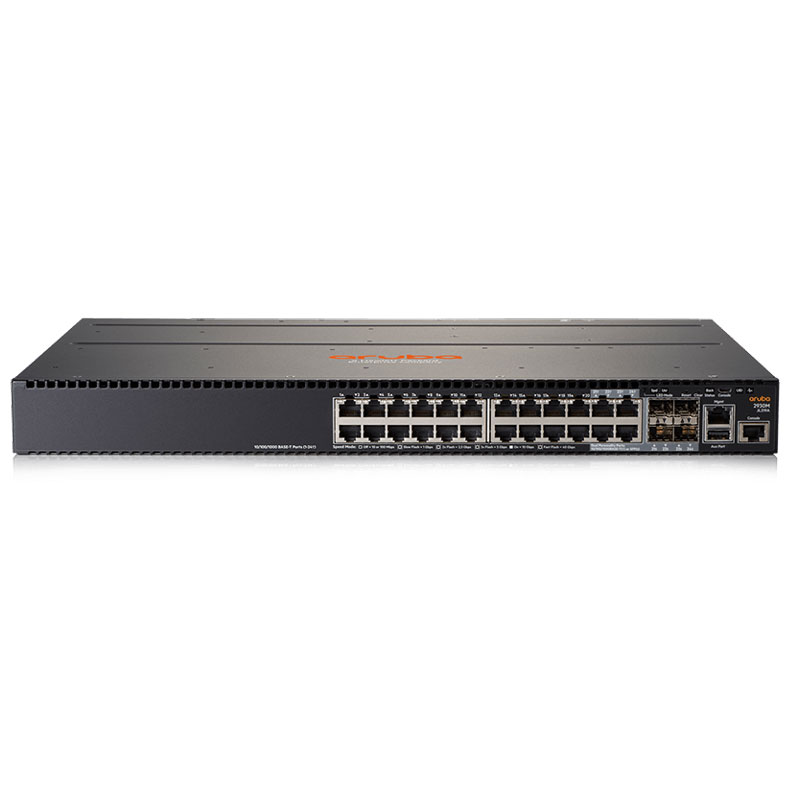

24G 1-slot Switch (JL319A):
●20 Autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T)
●4 Combo 10/100/1000BASE-T or 100/1000 Mbps SFP Ports

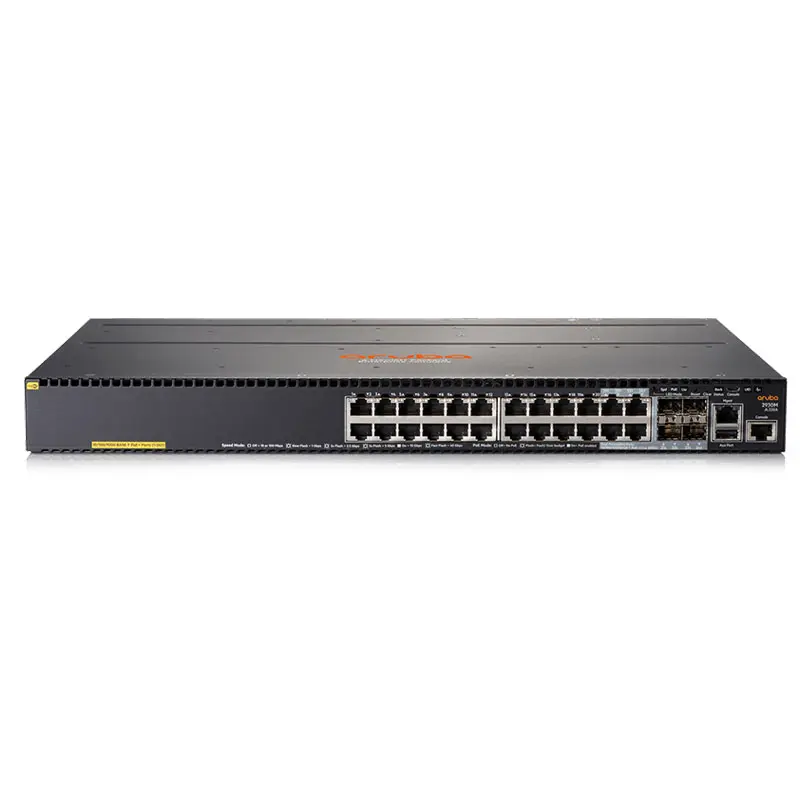

24G PoE+ 1-slot Switch (JL320A):
●20 Autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T, IEEE 802.3at PoE+)
●4 Combo 10/100/1000BASE-T or 100/1000 Mbps SFP Ports

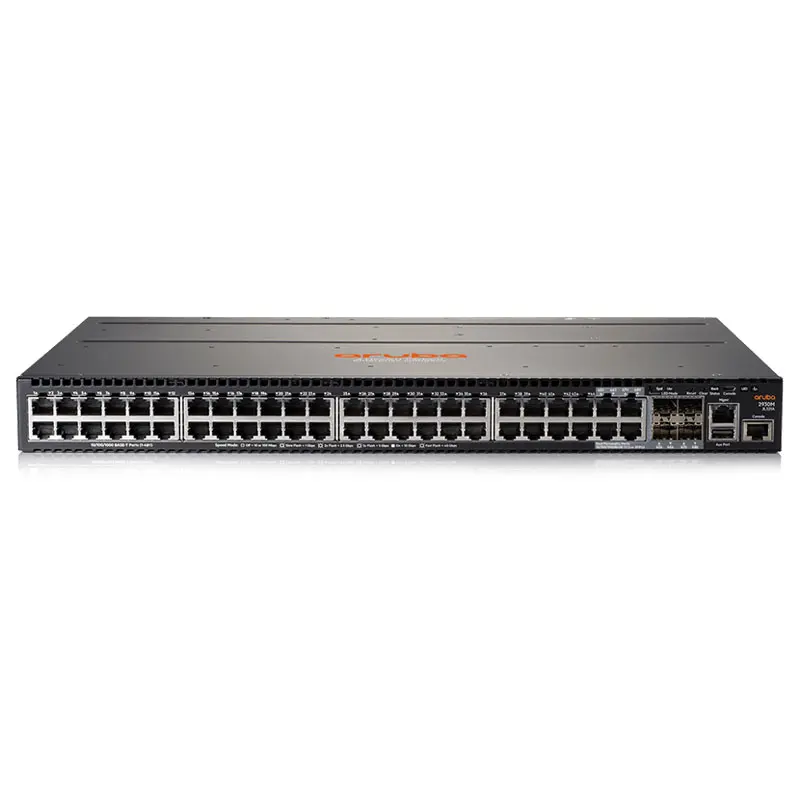

48G 1-slot Switch (JL321A):
●44 Autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T)
●4 Combo 10/100/1000BASE-T or 100/1000 Mbps SFP Ports

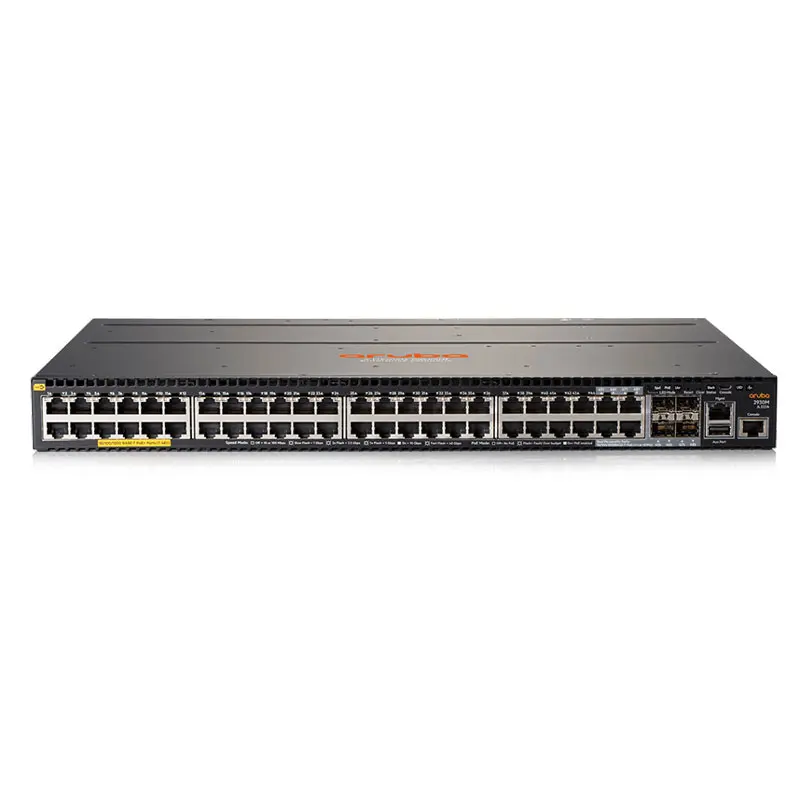

48G PoE+ 1-slot Switch (JL322A):
●44 Autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T, IEEE 802.3at PoE+)
●4 Combo 10/100/1000BASE-T or 100/1000 Mbps SFP Ports

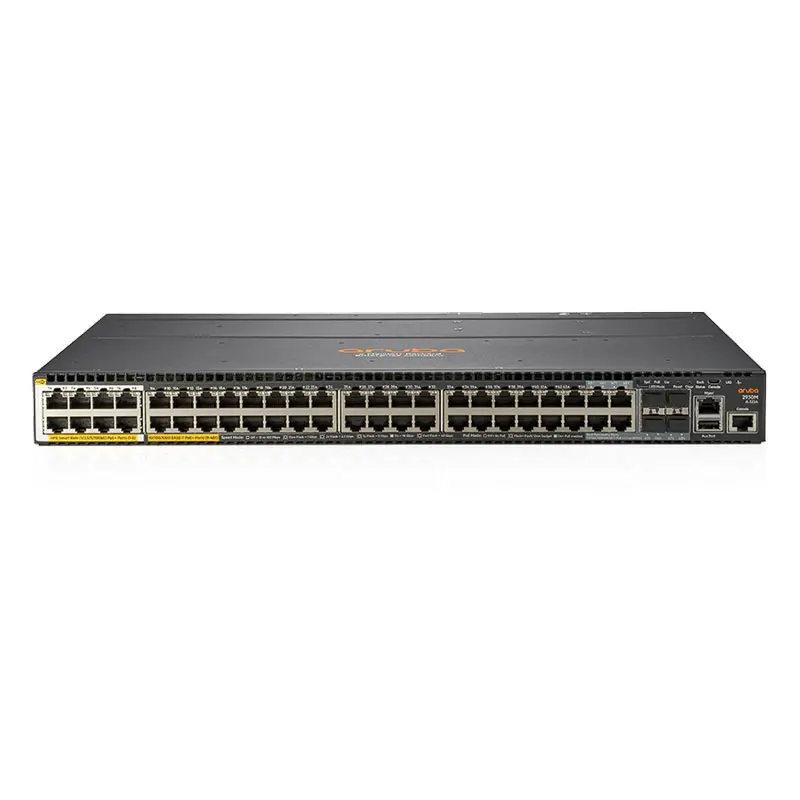

40G 8 HPE Smart Rate PoE+ 1-slot Switch (JL323A):
●36 Autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T PoE+)
●8 802.3bz 1/2.5/5 and 10GBASE-T copper PoE+ ports
●4 Combo 10/100/1000BASE-T or 100/1000 Mbps SFP Ports

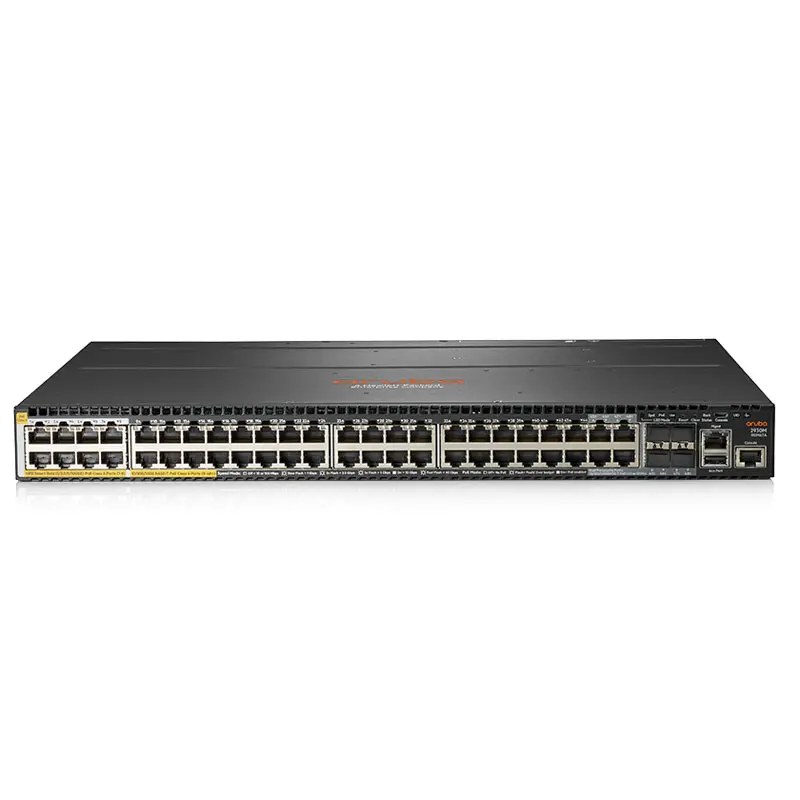

40G 8 Smart Rate POE Class 6 1-slot Switch (R0M67A):
●36 Autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T PoE Class 6); Duplex: 10BASE-T/100BASETX: half or full;1000BASE-T:full only
●8 802.3bz 1/2.5/5 and 10GBaseT PoE Class 6 ports
●4 Combo 10/100/1000BASE-T or 100/1000 Mbps SFP Ports

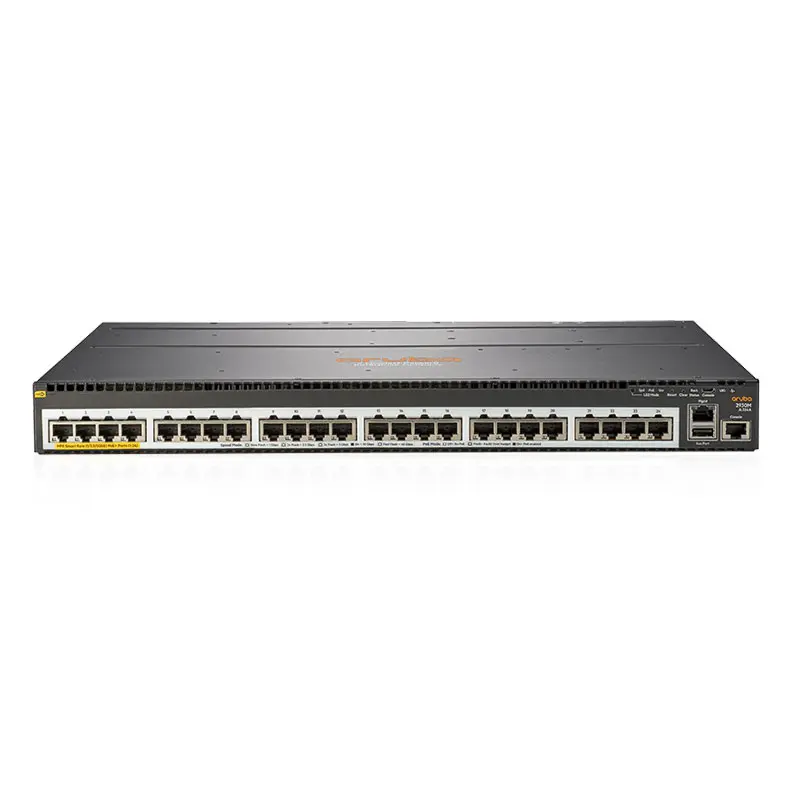

24 HPE Smart Rate PoE+ 1-slot Switch (JL324A):
●24 Autosensing 1/2.5/5GBaseT ports PoE+
24 Smart Rate POE Class 6 1-slot Switch (R0M68A):
●24 Autosensing 1/2.5/5GBaseT ports PoE Class 6
Switches (JL319A, JL320A, JL321A, JL322A, JL323A, R0M67A):
●Duplex: 10BASE-T/100BASE-TX: half or full
●1000BASE-T: full only
Additional ports and slots
●1 Dual Personality (RJ-45 or USB Micro-B) serial console port
●1 USB B port for uploading/ downloading files
●1 100BASE-T Out of Band Management Port
●1 Uplink Slot
●1 Stacking Module Slot
●2 Power Supply Slots (power supplies not included)
Memory and processor
●Dual Core ARM Cortex A9 @ 1016 MHz
●1 GB DDR3 SDRAM
●Packet Buffer Size: 12.38 MB 4.5 MB Ingress / 7.875 MB Egress
●4GB eMMC
Physical characteristics
●Dimensions:
●(H) 4.39 cm x (W) 44.25 cm x (D) 32.43 cm
(1.73" x 17.42" x 12.77")
●Weight:
●24G Switch (JL319A): 4.50 kg (9.81 lbs)
●24G PoE+ Switch (JL320A): 4.45 kg (9.92 lbs)
●48G Switch (JL321A): 4.60 kg (10.14 lbs)
●48G PoE+ Switch (JL322A): 4.65 kg (10.25 lbs)
●40G 8 HPE Smart Rate PoE+ 1-slot Switch (JL323A): 4.45 kg (9.81 lbs)
●40G 8 Smart Rate POE Class 6 1-slot Switch (R0M67A): 4.49 kg (9.90 lbs)
●24 HPE Smart Rate PoE+ 1-slot Switch (JL324A): 4.50 kg (9.92 lbs)
●24 Smart Rate POE Class 6 1-slot Switch (R0M68A): 4.52 kg (9.96 lbs)
Performance
●10 Mbps Latency: <98.5µs (FIFO 64 byte packets)
●100 Mbps Latency: <11.8µs (FIFO 64-byte Packets)
●1000 Mbps Latency: <3.1 µs (FIFO 64-byte packets)
●10 Gbps Latency: <3.4µs (FIFO 64-byte packets)
●1000 Mb Latency: <3.8 µs (64-byte packets)
●Routing table size: 2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
●MAC address table size: 32768 entries
●24G/24G PoE+ Switch (JL319A, JL320A):
●Throughput: 95.2 Mpps
●Switching capacity: 128 Gbps
●Switching Capacity (including stacking): 228 Gbps
●48G/48G PoE+ Switch (JL321A,JL322A):
●Throughput: up to 112 Mpps
●Switching capacity: 176 Gbps
●Switching Capacity (including stacking): 276 Gbps
●Smart Rate Switches (JL323A, JL324A, R0M67A, R0M68A):
●Throughput: up to 112 Mpps
●Switching capacity: 320 Gbps
●Switching Capacity (including stacking): 420 Gbps
