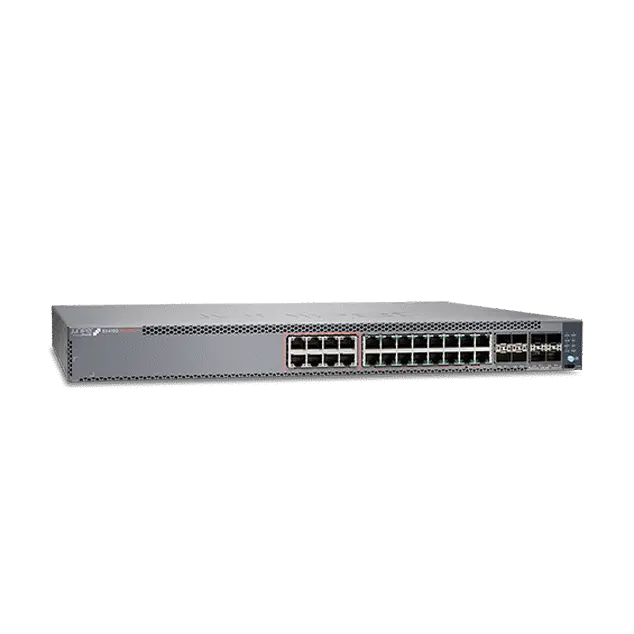

EX4100 Multigigabit Ethernet Switch

Crafted for high-performance campus and branch deployments, the Juniper Networks EX4100 Multigigabit Ethernet Switch is an AI-driven, cloud-ready access switching platform. The switch offers Multigigabit speeds of 100M/1/2.5/5/10GbE and PoE++ capability for Wi-Fi 6E access points. It’s differentiated by features such as EVPN-VXLAN, micro segmentation using group-based policies (GBP), MACsec AES-256, Power over Ethernet (PoE++), Precision Timing Protocol – Transparent Clock, and flow-based telemetry.
As part of the underlying infrastructure for Juniper Mist™ Wired Assurance, the EX4100 Multigigabit Ethernet Switch is easy to onboard, configure, and manage. The Juniper Mist Cloud streamlines deploying and managing your campus fabric, while Mist AI™ simplifies operations and improves visibility into the performance of connected devices.

EX4100 Multigigabit models:

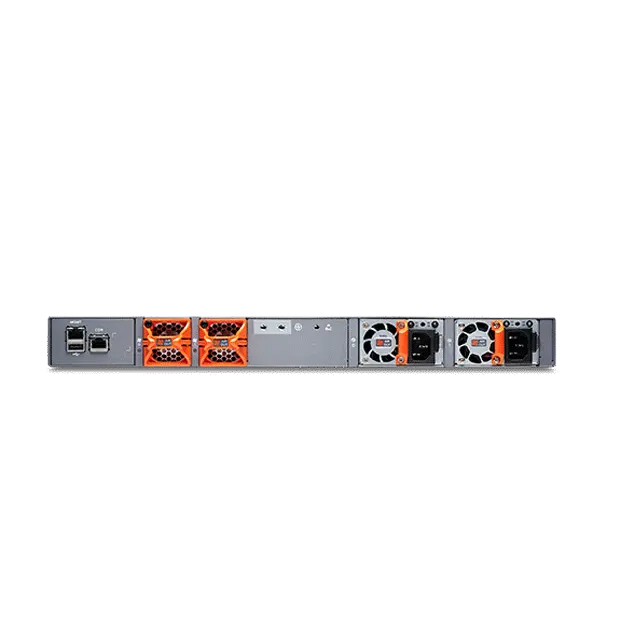

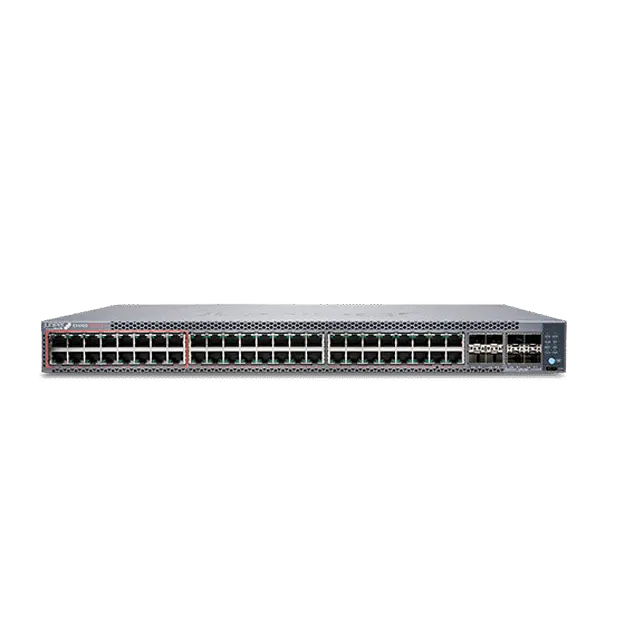

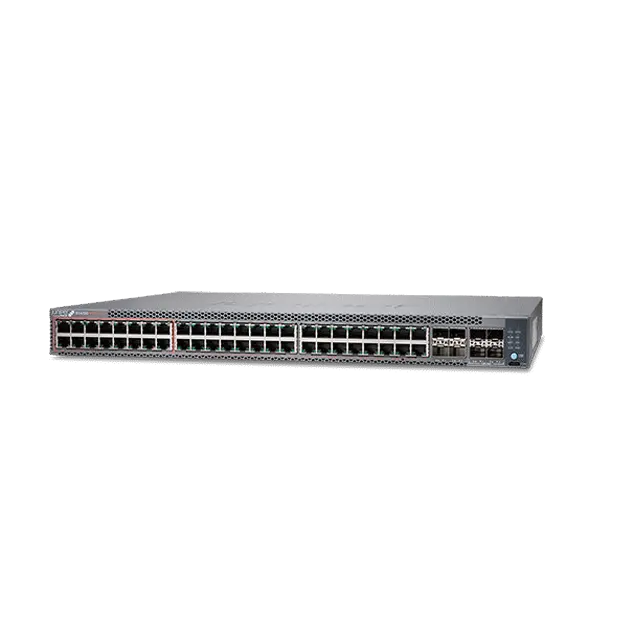

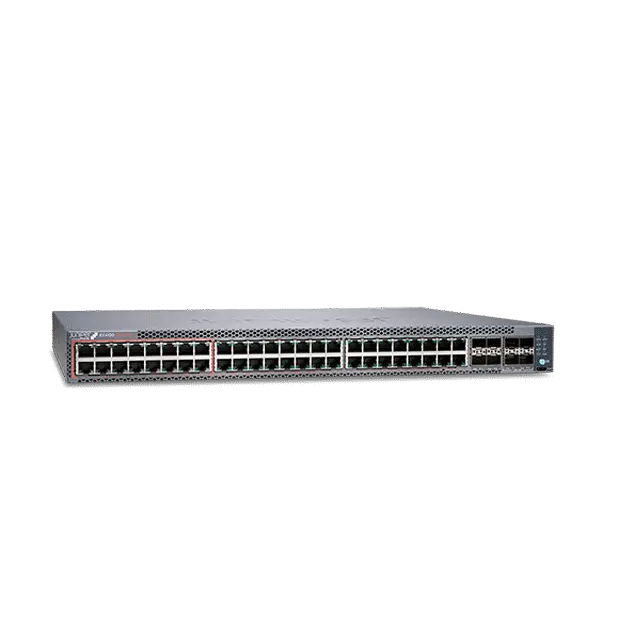

EX4100-48MP: 16 x 100M/1/2.5GbE + 32 x 1GbE, 4 x 1/10GbE uplinks, and 4 x 10/25GbE stacking/uplinks

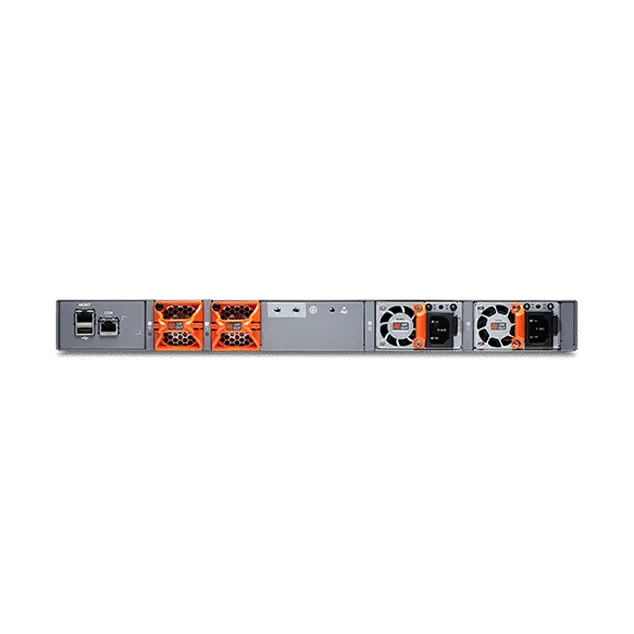

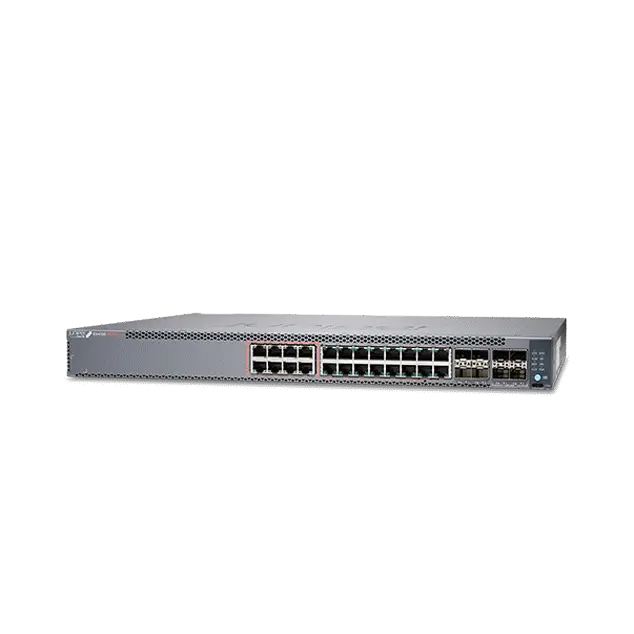

EX4100-24MP: 8 x 100M/1/2.5/5/10GbE + 16 x 1GbE, 4 x 1/10GbE uplinks, and 4 x 10/25GbE stacking/uplinks

product details

Key Features

Port density

100M/1/2.5/5/10GbE access ports, 10/25 GbE uplink/stacking, 1/10GbE uplink

Form factor

1 RU

Power

PoE++ up to 90W per port, 1620W PoE for EX4100-48MP, and EX4100-24MP

Switching capacity

472 Gbps

Fabric

EVPN-VXLAN, Virtual Chassis

The EX4100 line of Ethernet access switches offers secure, cloud-ready access for enterprise campus, branch, and data center networks in the AI era and optimized for the cloud. These platforms boost network performance and visibility, meeting the security demands of today—as well as for networks of the next decade.

As part of the underlying infrastructure for Juniper Mist Wired Assurance, the EX4100 line is purpose-built for, and managed by, the cloud. The switches leverage Mist AI to simplify operations and provide better visibility into the experience of connected devices, delivering a refreshing, experience-first approach to access layer switching.

Features + Benefits

AI-driven Switching

Onboard (day 0), provision (day 1), and manage (day 2+) the EX4100 Multigigabit Ethernet Switch from the cloud with Juniper Mist Wired Assurance, using AI-driven automation and insights to deliver improved experiences for IT staff, end users, and connected devices.

Streamline IT operations, reduce mean time to repair, and deliver a new generation of wired and wireless networks. The EX4100 Multigigabit Ethernet Switch provides rich streaming telemetry data for insights into switch health and wired service-level expectations (SLEs) for pre- and post-connection metrics.

End-to-End Campus Fabrics

Scale with ease, build resiliency, and streamline management with Virtual Chassis and EVPN-VXLAN-based campus fabrics, which help to simplify configuring and maintaining multiple devices.
